Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel Electrodes based in Hamilton, New Zealand. They provide reliable welding solutions for a variety of industries. With a strong focus on precision engineering, durability, and consistent performance, the company offers electrodes that adhere to international quality standards and are suitable for different welding environments. Their cutting-edge manufacturing processes guarantee excellent arc stability, superior weld quality, and a long lifespan. Catering to sectors like construction, fabrication, automotive, marine, and industrial, Mitchell Stainless remains a go-to partner in Hamilton, delivering dependable stainless steel welding electrodes tailored to meet diverse project needs.
The Stainless Steel Electrodes from Mitchell Stainless are generally made up of chromium, nickel, molybdenum, and carefully controlled carbon levels, which provide outstanding resistance to corrosion and oxidation. These electrodes boast impressive mechanical properties, including high tensile strength, ductility, and toughness, making them perfect for demanding welding tasks. Their well-balanced chemical composition ensures smooth weld bead formation, minimal spatter, and strong fusion. Built to endure high temperatures and tough conditions, these electrodes deliver remarkable structural stability, making them ideal for both general-purpose and high-performance stainless steel welding applications across various industries.
| Specifications | AWS A5.14 ERNiCr-3, AWS A5.11 ENiCrFe-3 |
| International Specifications | BS 3072-3076 (NA14) DIN 17742, DIN 17750, DIN 17754 WERKSTOFF Nr 1.4301 TÜV 305 AFNOR-NC 15 Fe |
| Size | 2.00 mm Dia., 2.50 mm Dia., 3.15 mm Dia., 4 mm Dia., 5 mm Dia., 6.3 mm Dia. |
| Length | 300 mm to 450 mm |
| Model | Chemical Composition | |||||||||
| C | Mn | Si | S | P | Cr | Ni | Mo | Cu | Nb | |
| AWS E308-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 18.0-21.0 | 9.0-11.0 | 0.75 | 0.75 | — |
| AWS E308L-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 18.0-21.0 | 9.0-11.0 | 0.75 | 0.75 | — |
| AWS E309-16 | 0.15 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 22.0-25.0 | 12.0-14.0 | 0.75 | 0.75 | — |
| AWS E309L-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 22.0-25.0 | 12.0-14.0 | 0.75 | 0.75 | — |
| AWS E309MoL-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 22.0-25.0 | 12.0-14.0 | 2.0-3.0 | 0.75 | — |
| AWS E310-16 | 0.08-0.20 | 1.0-2.5 | 0.75 | 0.03 | 0.03 | 25.0-28.0 | 20.0-22.5 | 0.75 | 0.75 | — |
| AWS E312-16 | 0.15 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 28.0-32.0 | 8.0-10.5 | 0.75 | 0.75 | — |
| AWS E316-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 17.0-20.0 | 11.0-14.0 | 2.0-3.0 | 0.75 | — |
| AWS E316L-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 17.0-20.0 | 11.0-14.0 | 2.0-3.1 | 0.75 | — |
| AWS E318-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 17.0-20.0 | 11.0-14.0 | 2.0-3.2 | 0.75 | 6xC-1.00 |
| AWS E347-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 18.0-21.0 | 9.0-11.0 | 0.75 | 0.75 | 8xC-1.00 |
| AWS E410-16 | 0.12 | 1 | 0.9 | 0.03 | 0.04 | 11.0-13.5 | 0.7 | 0.75 | 0.75 | — |
| Model | Machanical Properties of Deposited Metal | |||
| Tensile Strength | Elongation | |||
| (Mpa) | (%) | |||
| AWS E308-16 | >550 | >35 | ||
| AWS E308L-16 | >520 | >35 | ||
| AWS E309-16 | >550 | 25 | ||
| AWS E309L-16 | >550 | >25 | ||
| AWS E309MoL-16 | >540 | >25 | ||
| AWS E310-16 | >550 | >25 | ||
| AWS E312-16 | >660 | >22 | ||
| AWS E316-16 | >520 | >30 | ||
| AWS E316L-16 | >490 | >30 | ||
| AWS E318-16 | >550 | >25 | ||
| AWS E347-16 | >550 | >25 | ||
| AWS E410-16 | >450 | >20 | ||
Contact us to get a quick quote for your requirement.

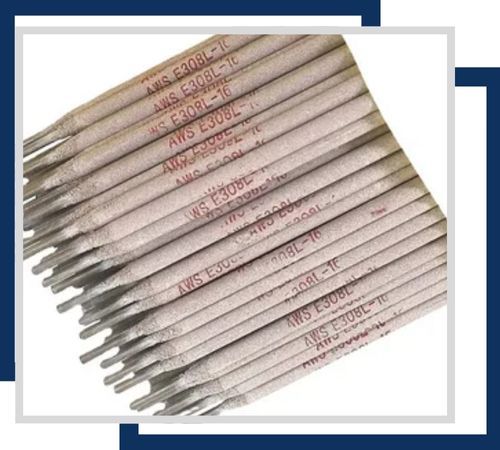

Designed for excellent corrosion resistance, these electrodes are ideal for thin stainless steel sections and are typically available in sizes like 1.6mm to 4.0mm in diameter. Their light coating provides good penetration and easy handling.

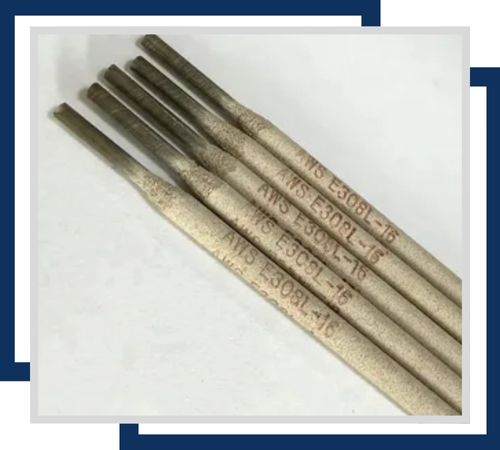

These electrodes offer superior corrosion resistance and are used for thicker stainless steel sections. They come in larger sizes, ranging from 3.2mm to 5.0mm in diameter, and their heavy coating ensures enhanced arc stability and better fill rates.

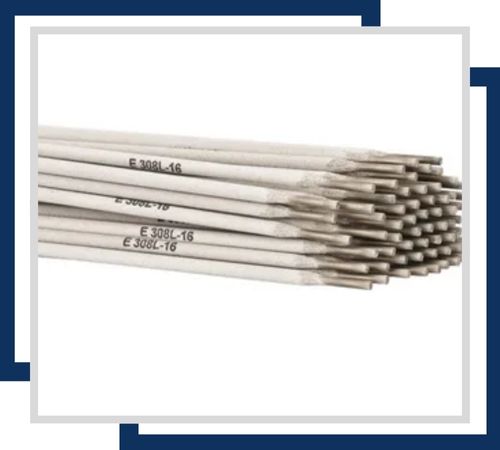

Providing outstanding corrosion resistance, these electrodes are used in shielded metal arc welding. They are available in various sizes, including 2.0mm to 4.0mm, and are known for their high-quality welds and resistance to high-temperature environments.
Mitchell Stainless offers top-notch quality material material that goes through rigid test procedure to ascertain maximum performance. We perform our materials with hardness test, spectrochemical analysis, PMI testing, micro and macro testing, flaring, pitting resistance, and IGC tests to make sure our materials achieve the highest standards. Along with this commitment to excellence, we also provide our clients with all the documentation necessary, like commercial invoices, packaging lists having precise net and gross weights, box numbers, and labels. A legalized or attested Certificate of Origin along with a Third-Party Inspection Certificate ensures 100% transparency and client satisfaction in our stainless steel electrodes pricing.
Choose stainless steel electrodes based on the base material’s grade, application (corrosion, heat, or strength requirements), and welding position. Ensure compatibility with the operating environment and desired mechanical properties.
Yes, you can order Stainless Steel Electrodes in custom sizes and polishes to meet your specific requirements. For more details, mail us at sales@mitchellstainless.co.nz
Stainless steel electrodes typically do not require additional corrosion protection coatings because they inherently resist corrosion due to their chromium content. However, coatings may be applied in extreme environments for added protection.
Yes, stainless steel electrodes can be used in cryogenic applications due to their excellent toughness and strength at low temperatures, along with superior corrosion resistance. They are ideal for welding materials exposed to cryogenic environments.
Mitchell Stainless’s Stainless Steel Electrodes are extensively utilized in industries that require robust, corrosion-resistant welds, such as construction, petrochemical, marine, food processing, and automotive manufacturing. They excel at joining stainless steel components in tanks, pipelines, pressure vessels, structural frameworks, and machinery. Thanks to their excellent arc performance and weld integrity, these electrodes are perfect for both fabrication and repair tasks.
