Mitchell Stainless is a reliable manufacturer and supplier of top-notch Stainless Steel Forged Fittings based in Hamilton, New Zealand. They cater to a variety of industrial sectors with precision-engineered solutions. With a strong dedication to quality, the company produces fittings that are built to last, offering outstanding durability, corrosion resistance, and performance even in tough environments. By utilizing cutting-edge manufacturing technology and rigorous quality controls, Mitchell Stainless ensures their forged fittings meet global standards, serving industries like oil and gas, petrochemicals, food processing, and marine engineering. Their focus on customer satisfaction, technical know-how, and prompt delivery makes them a go-to choice for stainless steel forged components.
The Stainless Steel Forged Fittings from Mitchell Stainless are crafted from high-quality grades like 304, 304L, 316, and 316L, which are celebrated for their impressive chromium-nickel composition and exceptional corrosion resistance. These alloys also include molybdenum, which boosts their strength and resistance to pitting, especially in chlorinated or marine settings. The forged design lends these fittings superior mechanical properties, such as high tensile strength, excellent toughness, and improved fatigue resistance. Their capability to endure high pressure and temperature makes them perfect for critical piping systems that require long-lasting reliability and structural integrity.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel forged fittings undergo rigorous testing to ensure quality, strength and durability. Each product is thoroughly inspected using advanced techniques such as dimensional testing, pressure testing and material analysis. The company offers a full range of certifications, including ASTM, ISO, and other industry standards, assuring reliable and compliant fittings.

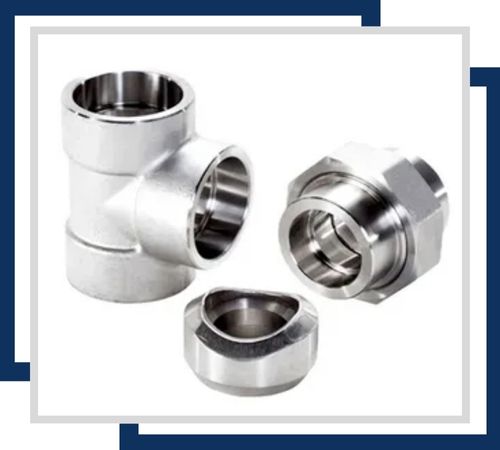

Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

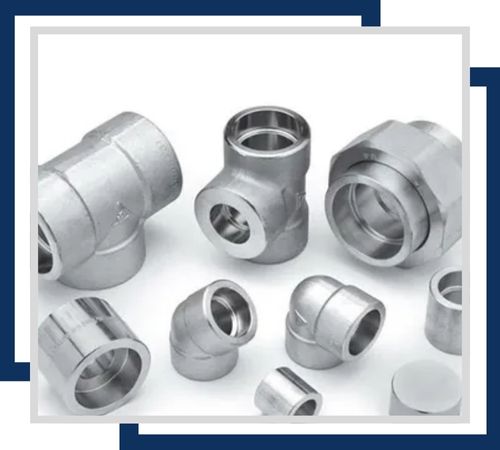

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.

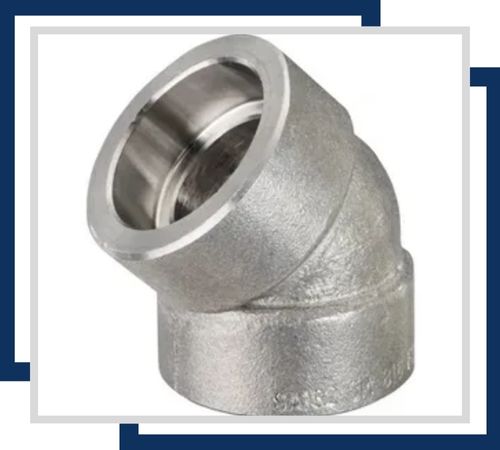

Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.

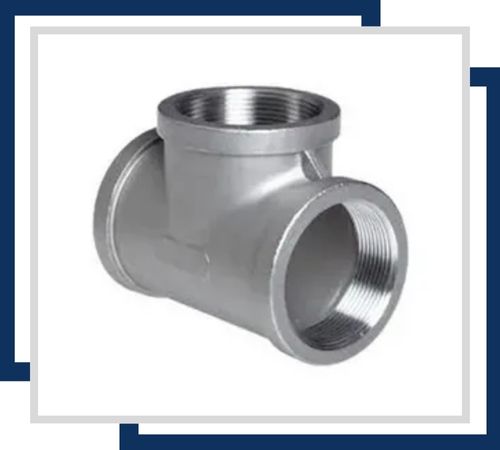

Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

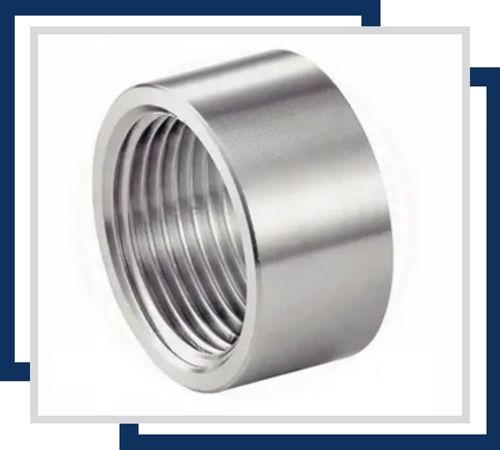

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

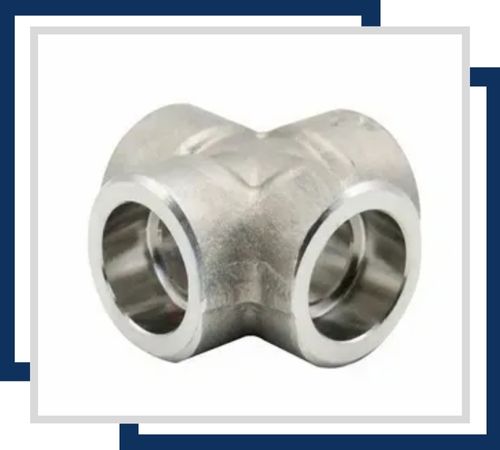

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
Mitchell Stainless’s Stainless Steel Forged Fittings find extensive use in industries that require strong, leak-proof, and corrosion-resistant piping connections. They are commonly used in oil and gas pipelines, chemical processing plants, water treatment facilities, and power generation systems. Their robust strength and dependability make them ideal for both high-pressure and high-temperature applications. Additionally, these fittings are favored in the food and beverage processing, pharmaceuticals, and marine sectors, where reliability and safety are paramount.
