Home > Forged Fittings > Stainless Steel 316/316L Forged Fittings
Mitchell Stainless has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 316/316L forged fittings right here in Hamilton, New Zealand. With a keen emphasis on precision engineering, durability, and adherence to international quality standards, they provide forged fittings that consistently perform well in tough industrial settings. Known for their outstanding corrosion resistance, impressive strength, and long-lasting service life, Mitchell Stainless caters to a variety of industries by delivering consistent quality, tailored solutions, and a dependable supply chain, making them a go-to choice for stainless steel forged fittings throughout New Zealand and beyond.
Stainless Steel 316/316L forged fittings are primarily made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which significantly boost their resistance to corrosion and pitting. The low carbon content in 316L helps reduce carbide precipitation, enhancing weldability. These fittings boast excellent mechanical properties, including high tensile strength, good yield strength, and remarkable toughness at both high and low temperatures. Their forged design promotes uniform grain flow, better fatigue resistance, and reliable performance even under high pressure and stress.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316 / 316L UNS (S31600, S31603), DIN (1.4401 / 1.4436, 1.4404 / 1.4435)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316/ | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 1399 °C (2550 °F) |
Contact us to get a quick quote for your requirement.
We ensures Stainless Steel 316/316L Forged Fittings of the highest quality. The products that leave our portal are all tested dimensionally, mechanically and chemically so as to guarantee performance and durability. We provide complete certifications in the form of material certificates and testing reports. All those cross international standards for all our customers’ satisfaction.

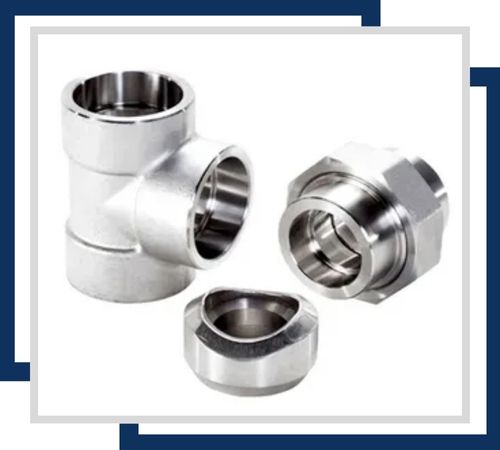

These fittings are available in various sizes, typically from 1/8″ to 4″ in diameter. They are designed for high-pressure applications and provide excellent resistance to corrosion, especially in marine environments.

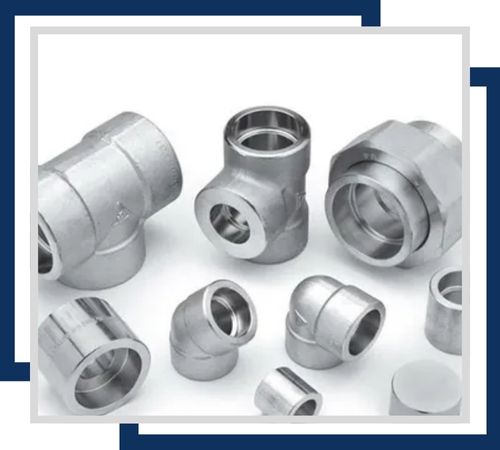

Threaded fittings come in sizes ranging from 1/8″ to 6″. They offer superior corrosion resistance and are ideal for use in aggressive environments such as chemical processing and marine applications.

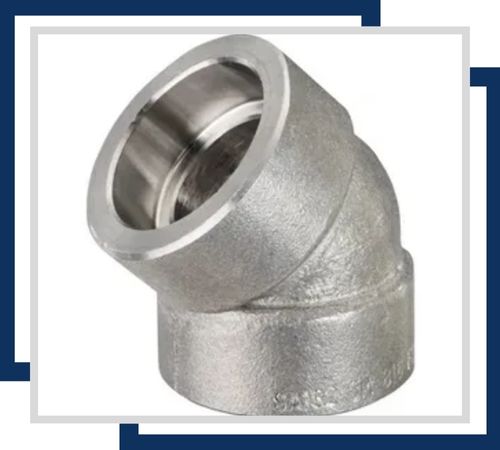

This elbow fitting is commonly available in sizes from 1/2″ to 4″. It facilitates smooth flow changes and resists corrosion effectively, making it suitable for high-pressure and high-temperature systems.

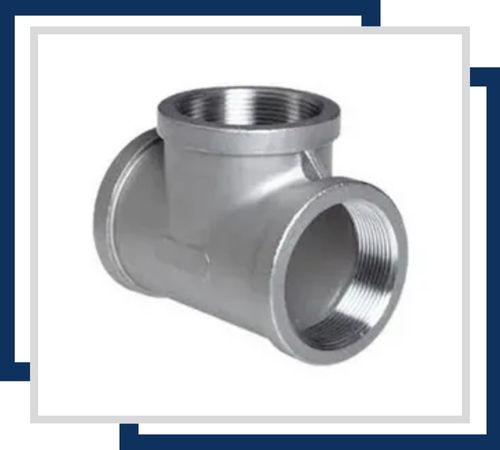

Threaded tees are available in sizes ranging from 1/8″ to 6″. They are used to connect three pipes at a junction and offer excellent resistance to corrosion and high temperatures.

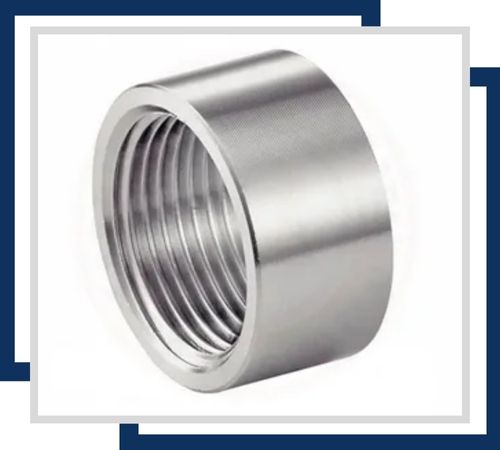

This fitting is typically available in sizes from 1/8″ to 4″. It is used to connect a pipe to another fitting or equipment and provides high resistance to corrosion and wear.

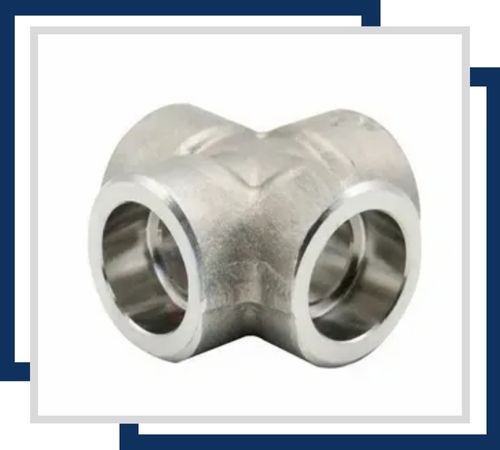

Available in sizes from 1/2″ to 4″, the socket weld cross is used to connect four pipes at right angles. It offers excellent corrosion resistance and is suitable for high-pressure applications.
The Stainless Steel 316/316L forged fittings produced by Mitchell Stainless find extensive use in industries that demand both strength and corrosion resistance. You’ll commonly see them in chemical processing, oil and gas, marine applications, food and beverage, pharmaceuticals, and water treatment systems. Their ability to withstand chlorides and harsh chemicals makes them perfect for coastal and offshore environments. Additionally, these forged fittings are utilized in heat exchangers, pressure piping, and sanitary systems where hygiene is crucial.
