Mitchell Stainless, a trusted manufacturer and supplier in Hamilton, New Zealand, provides high-quality Stainless Steel 309S fasteners designed for high-temperature and corrosion-resistant applications. 309S is an austenitic stainless steel with enhanced chromium and nickel content, offering excellent oxidation resistance and durability in extreme heat. Mitchell Stainless ensures each fastener meets strict quality standards, providing precise dimensions, consistent mechanical performance, and reliable long-term service. These fasteners are ideal for industrial, chemical, and high-temperature processing environments where strength, corrosion resistance, and thermal stability are critical.
Stainless Steel 309S fasteners are composed primarily of iron, with 23–25% chromium, 12–15% nickel, and small amounts of manganese, silicon, and carbon (low carbon version). This composition provides superior oxidation resistance, high-temperature strength, and good corrosion resistance. The elevated chromium and nickel content enhances scaling resistance and toughness at elevated temperatures, while maintaining mechanical integrity. 309S fasteners are suitable for use in aggressive industrial environments, where extreme heat, oxidation, and moderate corrosion exposure require durable and reliable fastening solutions.
Stainless Steel 309s Fasteners Specifications | |
| Grade | Stainless Steel 309S Fasteners. |
| Standard | ASTM A193 / A194, ASME SA193 / SA194, IS, BS, ANSI |
| Size | M02 to M33 |
| Length | UPTO 5 METERS |
| Surface Coating | Hot Dipped Galvanizing 309s Stainless Steel Fasteners, Phosphate 309s Stainless Steel Fasteners, Teflon 309 Stainless Steel Fasteners, Ptfe Coated 309s Stainless Steel Fasteners, Xylon 309 Stainless Steel Fasteners, Zinc 309s Stainless Steel Fasteners, Cadmium 309 Stainless Steel Fasteners |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
|
Properties |
Metric |
Imperial |
|
Tensile strength |
620 MPa |
89900 psi |
|
Yield strength (@ strain 0.200%) |
310 MPa |
45000 psi |
|
Izod impact |
120 – 165 J |
88.5 – 122 ft-lb |
|
Shear modulus (typical for steel) |
77 GPa |
11200 ksi |
|
Elastic modulus |
200 GPa |
29008 ksi |
|
Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation at break (in 50 mm) |
45% |
45% |
|
Hardness, Brinell |
147 |
147 |
|
Hardness, Rockwell B |
85 |
85 |
|
Hardness, Vickers (converted from Rockwell B hardness) |
169 |
169 |
Contact us to get a quick quote for your requirement.

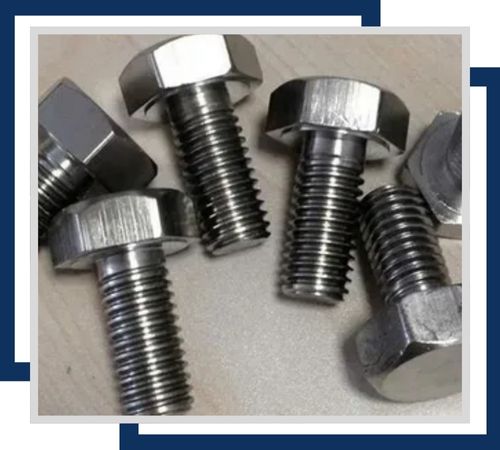

Stainless Steel 309s Bolts are available in sizes ranging from M6 to M64 and lengths from 10mm to 200mm. They offer high corrosion resistance, making them suitable for high-temperature environments and demanding applications.

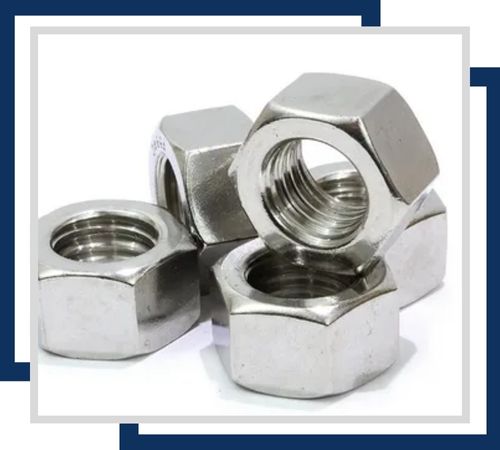

SS 309S Nuts come in sizes M6 to M64, providing excellent corrosion resistance and high strength. They are ideal for chemical processing and high-temperature applications, ensuring secure and reliable fastening.

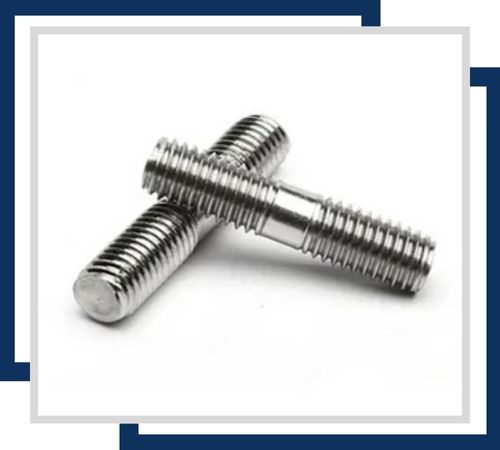

SS Stud bolts in 309S range from M6 to M64 in diameter and are available in lengths up to 200mm. They offer superior corrosion resistance and are commonly used in high-temperature and high-stress environments, such as petrochemical plants.

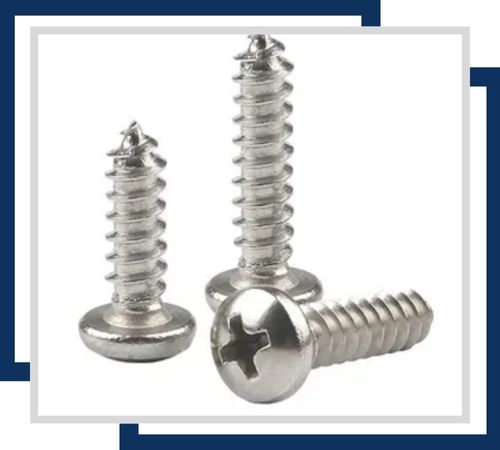

These screws are available in sizes from M1.6 to M12, with lengths up to 100mm. They provide excellent corrosion resistance and are suitable for various applications, including construction, automotive, and industrial machinery.

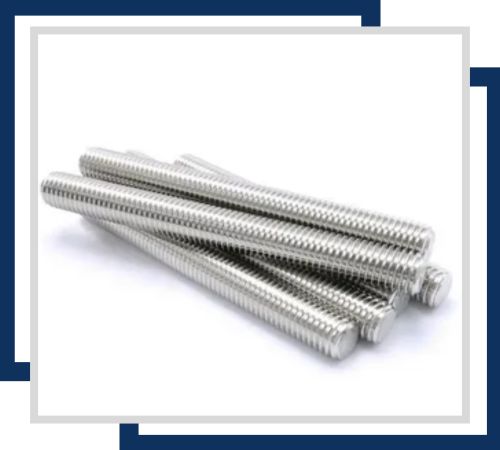

Threaded rods in 309S come in sizes from M6 to M64 and lengths up to 3000mm. Known for their corrosion resistance and high strength, they are used in construction, marine, and high-temperature applications.

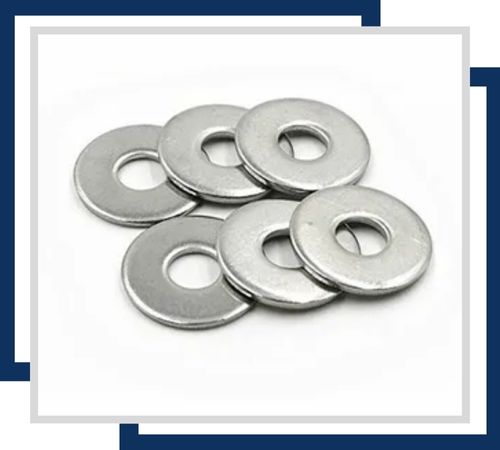

SS 309S washers are available in sizes ranging from M6 to M64. They provide excellent corrosion resistance and are used to distribute the load of a fastener, ensuring secure and stable assemblies in various applications, including high-temperature environments.
We manufacture these stainless steel fasteners using the best quality materials like SS 309S Fasteners. Most of our vast client base relies on these very fasteners, which are internationally trusted for their quality and reliability. These fasteners vary according to size and dimensions, custom-made, if so desired, to meet the specific needs of each customer. Our aim is to provide them with products they can trust in line with their exacting requirements.
Stainless Steel 309S fasteners are widely used in boilers, furnaces, heat exchangers, gas turbines, and high-temperature piping systems where oxidation resistance and high-temperature strength are essential. They are also employed in chemical processing plants, power generation facilities, and industrial equipment exposed to elevated temperatures. 309S fasteners are ideal for maintenance and repair projects requiring durable, heat-resistant, and corrosion-resistant fastening components. In New Zealand’s industrial and fabrication sectors, these fasteners are valued for providing reliable, long-lasting assemblies capable of withstanding harsh thermal and corrosive environments while maintaining structural integrity.
