Stainless Steel 904L tube fittings comprise 25% chromium, 20% nickel, 4.5% molybdenum, and trace amounts of copper. This high alloy content provides excellent resistance to corrosion, especially in acidic environments, and enhances strength and durability. Properties include high pitting and crevice corrosion resistance, good formability, and resistance to chloride-induced stress corrosion cracking. Advantages of 904L tube fittings include their suitability for harsh environments, exceptional longevity, and minimal maintenance, making them ideal for chemical processing, marine, and petrochemical industries.
| Specifications | : | ASTM S182 / A276 ASME SA 479 |
| Tube Size | : | 6mm to 38mm to 1/4″ to 1 1/2″ |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE, etc. |
| Brass | : | ASTM B16 ASTM B 453 |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| SS 904L | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max | 19 – 23 | 23 – 28 | 4 – 5 | 1 – 2 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 904L Tube Fittings are crafted from a high-alloy austenitic stainless steel with low carbon content, featuring essential elements like chromium, nickel, molybdenum, and copper. This unique blend offers impressive resistance to acid corrosion and chloride environments. On the mechanical side, 904L boasts excellent tensile strength, good yield strength, and remarkable toughness, even in challenging temperatures. Its non-magnetic properties and high weldability make for easy fabrication and long-lasting performance. These characteristics make 904L tube fittings ideal for applications that require strong structural integrity and resistance to pitting, crevice corrosion, and stress-related cracking.

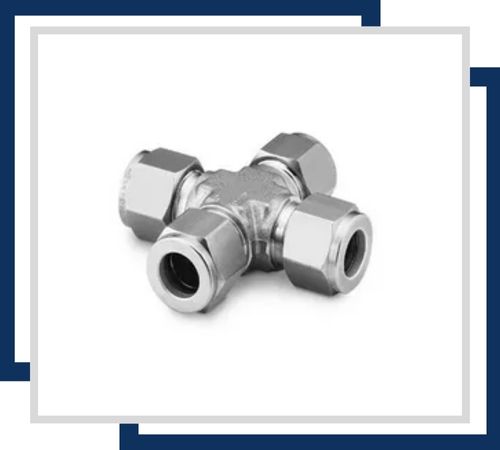

Stainless Steel 904L Union Cross connects four tubes at a right angle. It typically comes in sizes ranging from 1/4″ to 2″. Known for its exceptional corrosion resistance, it is ideal for highly corrosive environments.

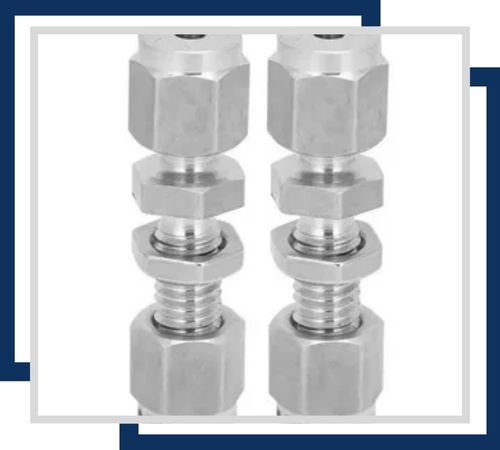

Stainless Steel 904L Reducer Union smoothly transitions two different tube sizes. Available in sizes from 1/4″ to 2″ and designed for high corrosion resistance, it’s perfect for managing flow changes in corrosive settings.

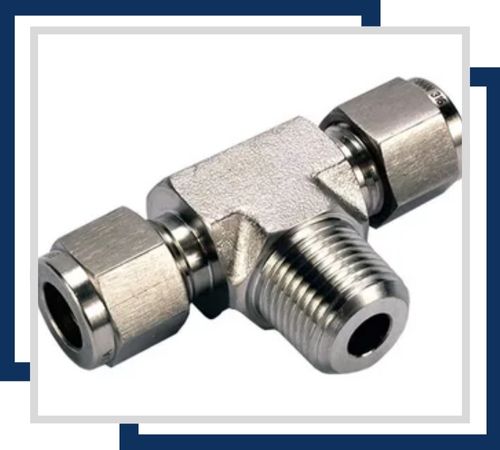

Stainless Steel 904L Male Branch Tee features a male thread on the branch and is used to create a branch connection. It is available in sizes from 1/4″ to 2″ and offers excellent resistance to corrosion, making it suitable for harsh environments.

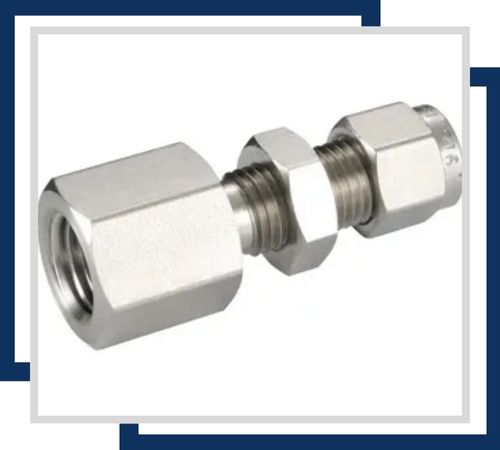

The Stainless Steel 904L Female Connector is designed to join two tubes with female threads. It comes in sizes from 1/4″ to 2″ and is highly corrosion resistant, ideal for chemical processing and marine applications.

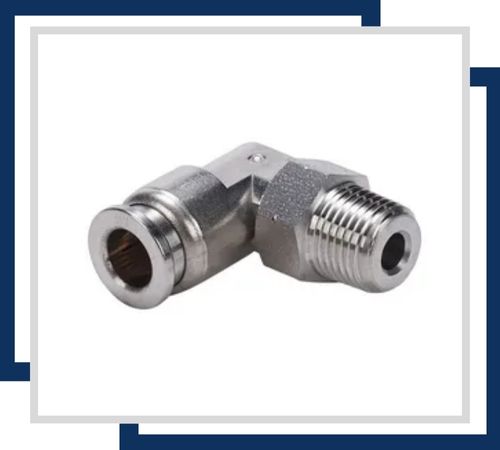

Stainless Steel 904L Male Elbow allows for a 90-degree change in the direction of the tubing. Available in sizes from 1/4″ to 2″, it provides superior corrosion resistance and is suitable for complex piping systems in corrosive environments.

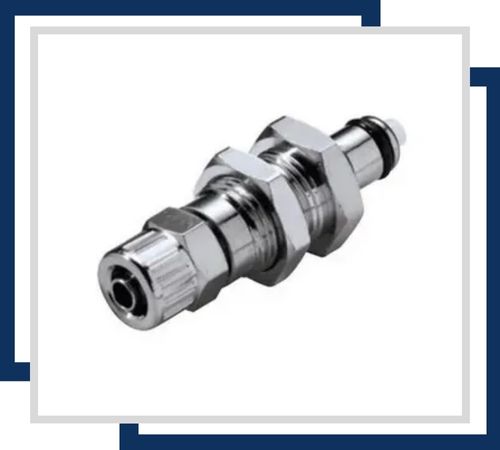

A Stainless Steel 904L Male Connector connects two tubes with male threads. It is available in sizes from 1/4″ to 2″ and offers high resistance to corrosion, making it ideal for use in aggressive chemical environments.
Mitchell Stainless is a reputable manufacturer and supplier located in Hamilton, New Zealand, known for its top-notch Stainless Steel 904L Tube Fittings. With a strong dedication to quality, the company offers fittings that are not only corrosion-resistant but also built to perform in the toughest industrial settings. Thanks to their state-of-the-art manufacturing facilities and a talented technical team, Mitchell Stainless guarantees precision, durability, and consistent quality in every product. Their Stainless Steel 904L Tube Fittings comply with global standards, making them perfect for industries that demand exceptional resistance to chemicals, high temperatures, and extreme conditions. Customers trust Mitchell Stainless for reliable products, prompt delivery, and outstanding service.
Stainless Steel 904L Tube Fittings find their place in various industries where outstanding corrosion resistance and durability are crucial. They are commonly used in chemical processing, petrochemical plants, oil and gas refineries, and pharmaceutical manufacturing, thanks to their ability to handle aggressive acids and chloride-rich environments. In marine engineering, these fittings excel at resisting seawater corrosion, making them perfect for offshore and shipbuilding projects.
