Mitchell Stainless, a trusted manufacturer and supplier in Hamilton, New Zealand, provides high-quality Stainless Steel 202 tubing designed for applications requiring good corrosion resistance and cost-effective performance. 202 is an austenitic stainless steel with higher manganese content, offering good strength, ductility, and formability at a lower cost compared to 304. Mitchell Stainless ensures precise dimensions, smooth surface finishes, and consistent quality in each tube. These tubes are ideal for structural, industrial, and general-purpose applications where moderate corrosion resistance and mechanical performance are needed, combining durability with ease of fabrication.
Stainless Steel 202 tubing is composed primarily of iron, with 17–19% chromium, 4–6% nickel, 7–9% manganese, and small amounts of carbon, silicon, and phosphorus. The higher manganese content compensates for lower nickel, providing good mechanical strength and corrosion resistance. Chromium enhances oxidation and corrosion resistance, while the low carbon content improves weldability and formability. This composition ensures Stainless Steel 202 tubing is suitable for applications requiring moderate corrosion resistance, reliable mechanical properties, and cost-effective performance in both industrial and structural environments.
| Item | Stainless Steel 202 (Hot rolled, cold rolled) | |
| Thickness | 0.3~10.0mm | |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 202 sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Brand: | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin | |
| Manufacturer: | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. | |
| Export to | India, Indonesia, Malaysia, Singapore, Saudi Arabia, Qatar, New Zealand, Iran, Iraq, Oman, South Africa, Nigeria, Kenya, Italy, UK, Brazil, Russia , Egypt , Kuwait , Taiwan, Australia . |
|
Element |
Fe |
Cr |
Mn |
Ni |
Si |
N |
C |
P |
S |
|
|
Content (%) |
68 |
17-19 |
7.50-10 |
4-6 |
≤ 1 |
≤ 0.25 |
≤ 0.15 |
≤ 0.060 |
≤ 0.030 |
| Properties | Metric | Imperial | |
| Tensile strength | 515 MPa | 74694 psi | |
| Yield strength | 275 MPa | 39900 psi | |
| Elastic modulus | 207 GPa | 30000 ksi | |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 | |
| Elongation at break | 40% | 40% |
Contact us to get a quick quote for your requirement.
We ensures that all Stainless Steel 202 tubing is tested for quality and performance. Each batch is tested for tensile strength, corrosion resistance, and dimensional accuracy. CoC and test reports are provided, confirming adherence to industry standards and customer specifications.

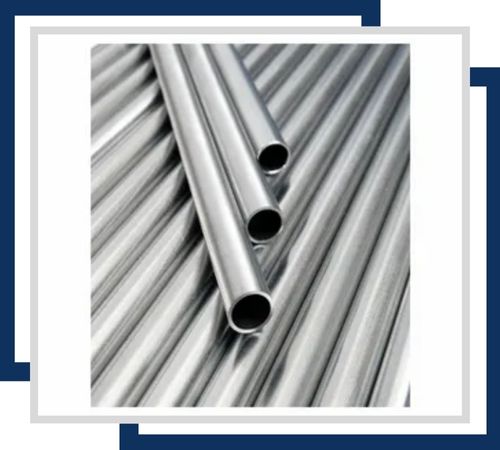

With outstanding corrosion resistance, Stainless Steel 904L Seamless Tubing is ideal for high-pressure applications. Typically available in sizes ranging from 1/8″ to 8″ in diameter and custom lengths, it offers uniform strength and durability without weld seams.

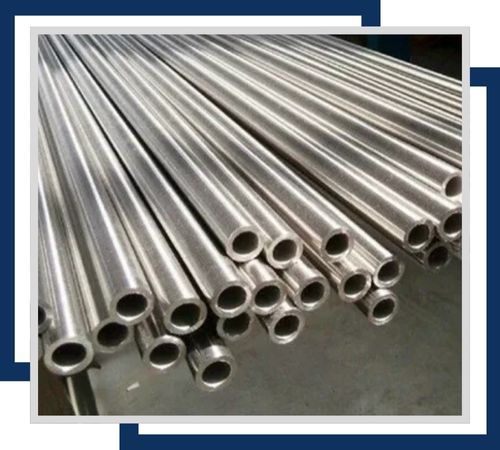

Welded stainless steel tubing provides good corrosion resistance and is often used in less critical applications. Sizes generally range from 1/2″ to 12″ in diameter. Its manufacturing process involves welding a flat-rolled stainless steel sheet into a tube shape.

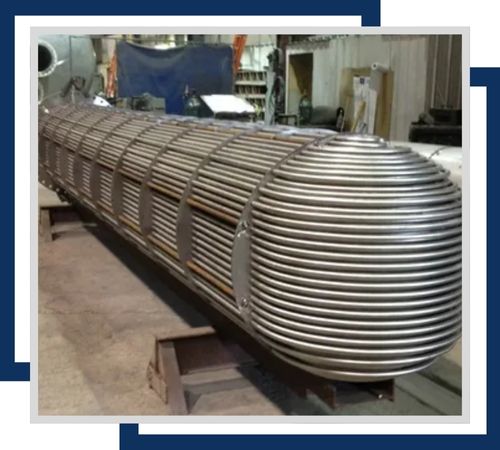

Stainless steel heat exchanger tubes are highly corrosion-resistant and designed for thermal conductivity. Available in various sizes, typically from 1/2″ to 4″ in diameter and up to 20 feet long. Essential for efficient heat transfer in industrial processes.

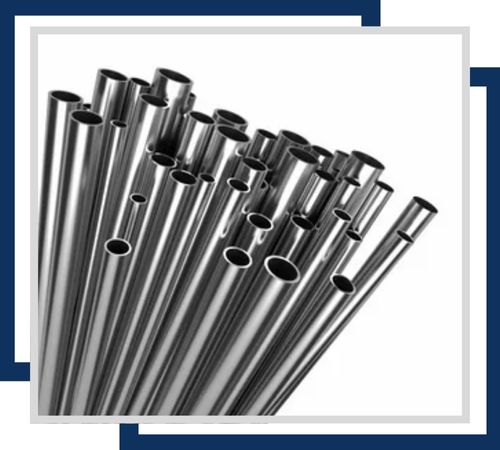

Instrumentation stainless steel tubing offers excellent corrosion resistance and is used for precise control systems. Standard sizes range from 1/16″ to 1″ in diameter. It ensures reliable performance in various high-pressure and high-temperature applications.

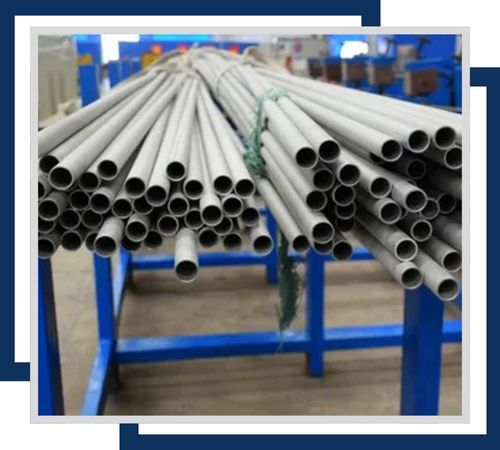

Boiler tubes of stainless steel are known for their exceptional corrosion and high-temperature resistance. Available in sizes from 1/2″ to 4″ in diameter. Designed for use in power generation and industrial boilers to handle high-pressure steam.

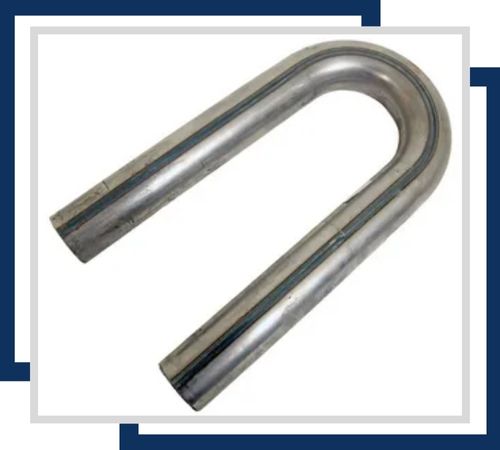

Stainless steel U-tubes provide high corrosion resistance and are used in heat exchangers and condensers. Sizes usually range from 1/2″ to 4″ in diameter. They are fabricated into a U shape to fit specific thermal or fluid flow requirements.

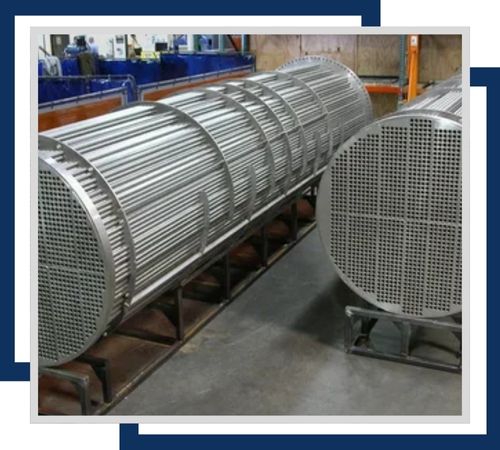

Condenser tubes made of stainless steel are highly corrosion-resistant and used in cooling systems. Commonly available in diameters from 1/2″ to 4″ and lengths up to 20 feet. Essential for efficient heat exchange in cooling applications.

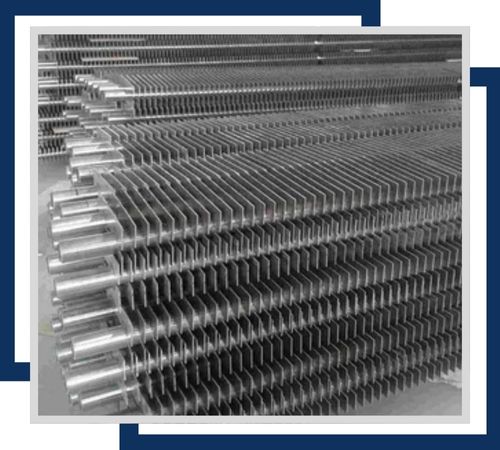

Stainless steel fin tubes offer enhanced heat transfer efficiency and corrosion resistance. Sizes range from 1/2″ to 4″ in diameter with various fin heights and thicknesses. They are used in applications with critical heat exchange efficiency, such as HVAC systems.
Stainless Steel 202 tubing is widely used in architectural structures, furniture, automotive components, piping systems, and general industrial applications where moderate corrosion resistance and good mechanical strength are sufficient. Typical applications include handrails, railings, tubing for furniture, supports, and frames. It is also used in maintenance and repair projects where cost-effective, durable, and corrosion-resistant tubing is needed. In New Zealand’s fabrication and industrial sectors, 202 tubing is valued for providing reliable performance, ease of fabrication, and long-lasting components in applications where premium corrosion resistance is not critical.
