Mitchell Stainless has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 316Ti tubing in Hamilton, New Zealand. They cater to a variety of industrial sectors with precision-engineered solutions. With state-of-the-art manufacturing facilities and rigorous quality control measures, the company ensures that their tubing meets international standards for both performance and reliability. Known for its outstanding corrosion resistance, high-temperature stability, and long-lasting durability, Mitchell Stainless is dedicated to customer satisfaction, timely deliveries, and providing technical support, making them a trusted partner for demanding engineering and industrial needs.
Stainless Steel 316Ti tubing is an austenitic alloy that includes chromium, nickel, molybdenum, and titanium, which enhances its stability. The addition of titanium significantly boosts resistance to intergranular corrosion, particularly at higher temperatures. This grade is recognized for its impressive tensile strength, good yield strength, and exceptional toughness, even in challenging environments. It maintains its mechanical integrity under high pressure and thermal stress while offering excellent formability and weldability. These well-balanced mechanical properties make 316Ti tubing ideal for critical applications that demand durability, strength, and corrosion resistance.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
Contact us to get a quick quote for your requirement.
This steel 316Ti tubing from Mitchell Stainless is thoroughly inspected for pitting and intergranular corrosion resistance, tensile strength, and hardness, apart from hydrostatic pressure testing for premium quality, and is accredited and approved to international specifications like ASTM, ASME, and ISO against each material test report.

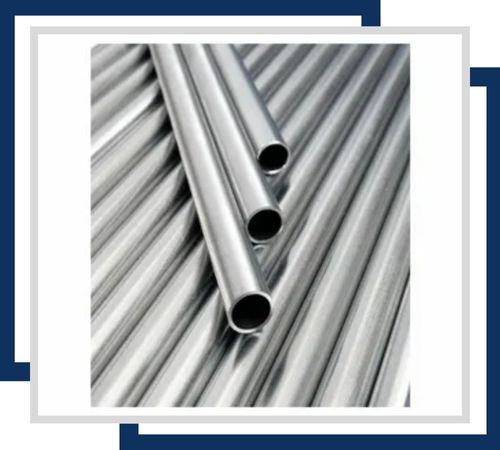

Stainless Steel 316Ti Seamless Tubing is known for its superior corrosion resistance, especially in high-temperature environments. Typically available in sizes ranging from 1/8” to 12” OD, it offers excellent mechanical properties and smooth surface finishes. Ideal for applications requiring high precision and reliability.

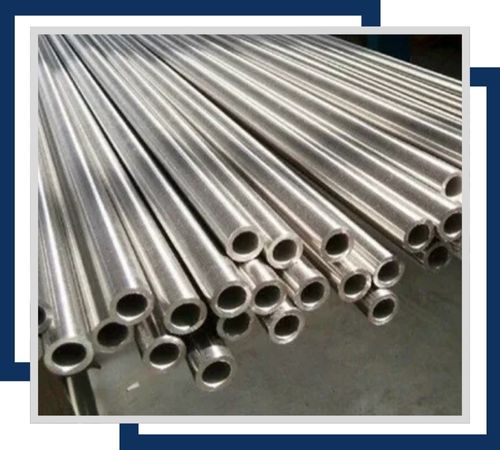

Stainless Steel 316Ti Welded Tubing combines excellent corrosion resistance with durability. Available in sizes from 1/8” to 24” OD, this tubing is cost-effective and versatile for various applications. It is particularly suitable for industries where high resistance to oxidizing acids is essential.

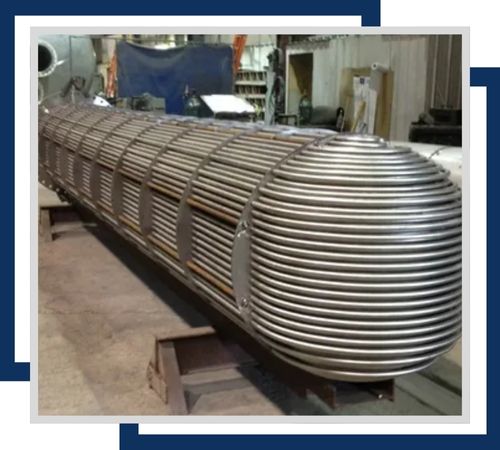

Stainless Steel 316Ti Heat Exchanger Tubes are designed for optimal thermal conductivity and corrosion resistance. These tubes come in sizes ranging from 1/4” to 2” OD, making them perfect for heat exchangers in chemical processing and power generation industries. They ensure efficient heat transfer and long service life.

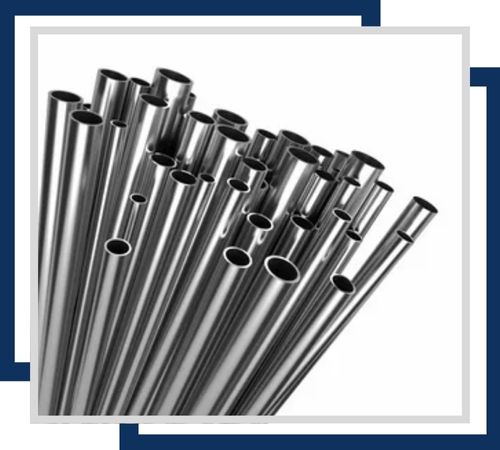

Stainless Steel 316Ti Instrumentation Tubing offers superior corrosion resistance and precision. Available in sizes from 1/16” to 1” OD, it is ideal for high-pressure and high-temperature applications in instrumentation and control systems. Ensures reliable performance and accuracy in critical applications.

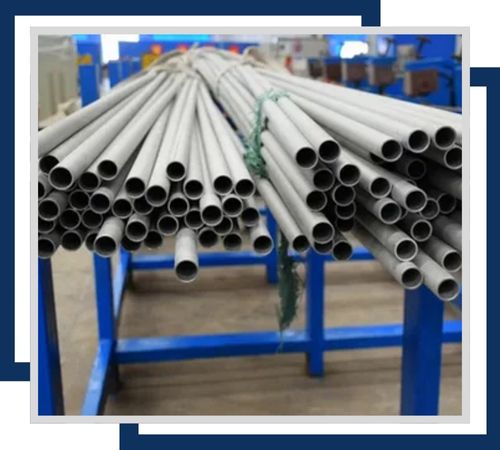

Stainless Steel 316Ti Boiler Tubes are engineered for high temperature and pressure conditions. Sizes range from 1/2” to 5” OD, providing excellent resistance to oxidation and corrosion. These tubes are essential for maintaining efficiency and longevity in boiler systems

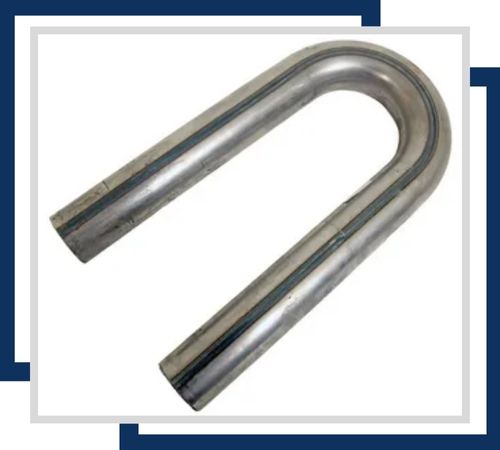

Stainless Steel 316Ti U-Tubes are designed for heat exchangers and boiler systems where space-saving is crucial. Available in sizes from 1/4” to 1” OD, they offer exceptional corrosion resistance and flexibility in design. Ideal for applications requiring compact and efficient thermal transfer solutions

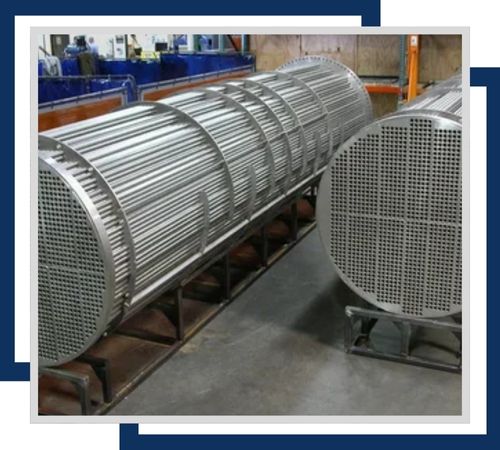

Stainless Steel 316Ti Condenser Tubes provide excellent corrosion resistance and thermal conductivity. Sizes range from 1/4” to 2” OD, making them suitable for condensers in power plants and HVAC systems. Ensures efficient condensation and long-term performance

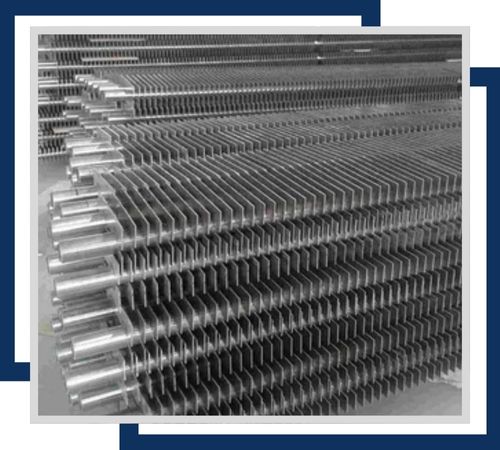

Stainless Steel 316Ti Fin Tubes enhance heat transfer efficiency while maintaining high corrosion resistance. Available in sizes from 1/4” to 1-1/2” OD, these tubes are used in heat exchangers, condensers, and evaporators. The finned design maximizes surface area for optimal thermal performance.
Stainless Steel 316Ti tubing finds extensive use in various industries where corrosion resistance and high-temperature performance are crucial. You’ll commonly see it in chemical processing equipment, heat exchangers, power generation systems, and petrochemical plants. Additionally, it’s utilized in pharmaceutical, food processing, and marine environments due to its remarkable resistance to corrosion and ability to withstand harsh conditions. This versatility makes 316Ti tubing a go-to choice for applications that require both reliability and performance in demanding settings.
