Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 405 Tubing based in Hamilton, New Zealand. They cater to a variety of industrial sectors with precision-engineered solutions. Renowned for their dedication to quality, the company provides durable, corrosion-resistant, and cost-effective tubing products that meet the toughest operational demands. The Stainless Steel 405 Tubing from Mitchell Stainless is crafted using cutting-edge technology and rigorous quality standards, ensuring outstanding performance and longevity. With a strong emphasis on customer satisfaction, prompt delivery, and technical know-how, Mitchell Stainless has become a trusted partner for industries in need of reliable stainless steel tubing in Hamilton and throughout New Zealand.
Stainless Steel 405 Tubing is a ferritic stainless steel that mainly consists of chromium, with small amounts of aluminum added to boost oxidation resistance. Its typical makeup features around 11.5–14.5% chromium, low carbon content, and trace elements like manganese and silicon. This grade is known for its good ductility, moderate strength, and excellent weldability. Its mechanical properties include strong resistance to thermal fatigue, lower susceptibility to hardening, and a stable structure during high-temperature use. These characteristics make SS 405 tubing perfect for applications where thermal cycling and corrosion resistance are essential.
| Description | ASTM A240 / ASME SA240 Stainless Steel Plates, ASTM A240 Hot Rolled Stainless Steel Plates |
| Standard | ASTM, ASME, BS, DIN, EN |
| Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, |
| 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc | |
| Specification | Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.
Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt. |
| Technique | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc. |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Thickness | 0.25-200mm, 0.3mm to 120mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm |
| Package | Standard Export Seaworthy Package, or as required. |
| Value Added Services | Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc. |
| MTC | Mill Test Certificate, Available as per EN 10204 3.1 |
| Element | Content (%) |
|---|---|
| Iron, Fe | 85 |
| Chromium, Cr | 13 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Aluminum, Al | 0.2 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.040 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 448 MPa | 65000 psi |
| Yield strength (@strain 0.200 %/) | 276 MPa | 40000 psi |
| Elastic modulus | 200 GPa | 29007 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.00% | 25.00% |
| Izod Impact (@20°C/68°F) | 41.0 J | 30.2 ft-lb |
| Hardness, Brinell (converted from Rockwell B hardness) | 131 | 131 |
| Hardness, Knoop (converted from Rockwell B hardness) | 146 | 146 |
| Hardness, Rockwell B | 75 | 75 |
| Hardness, Vickers (converted from Rockwell B hardness) | 140 | 140 |
Contact us to get a quick quote for your requirement.
We provides high-quality Stainless Steel 405 Tubing, strength tested, durable, and precise. All our products have undergone thorough testing in their chemical composition analysis, mechanical property assessments, and dimensional checks to provide optimal performance. All products are accompanied by certifications of compliance with industry standards and customer specifications.

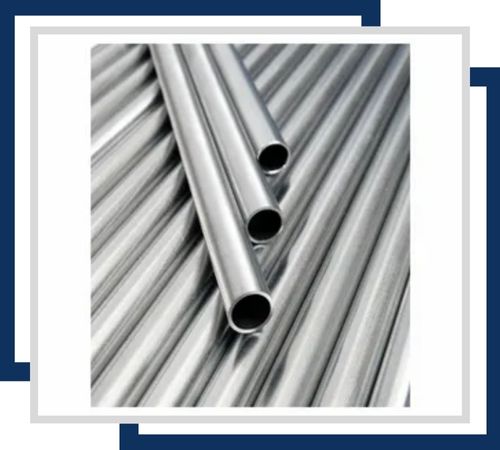

Manufactured without welding, this tubing offers superior structural integrity and reliability. Commonly available in sizes ranging from 1/8″ to 2″ in diameter. It has moderate corrosion resistance suitable for many applications.

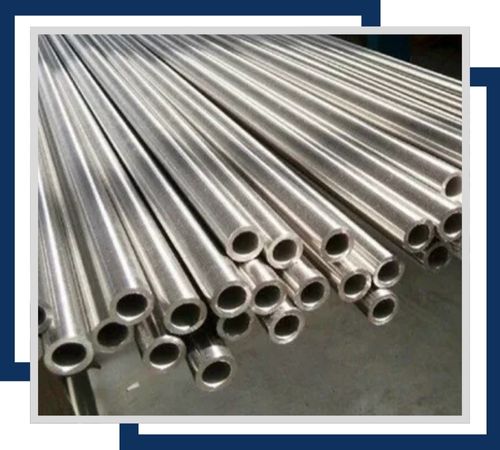

Produced by welding a flat steel strip into a tubular shape, this type is typically available in sizes from 1/4″ to 6″ in diameter. It has good resistance to oxidation and is used where cost-efficiency is essential.

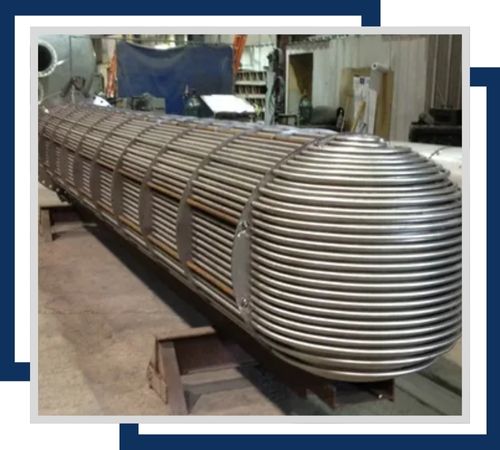

Designed specifically for heat exchanger applications, these tubes are available in diameters from 1/2″ to 2″. They provide good resistance to scaling and oxidation at high temperatures.

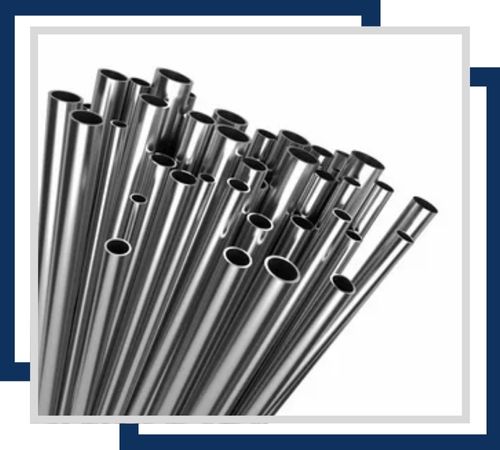

Precision-made for instrumentation purposes, this tubing usually comes in sizes from 1/16″ to 1″ in diameter. It offers excellent resistance to corrosion and is ideal for high-pressure applications.

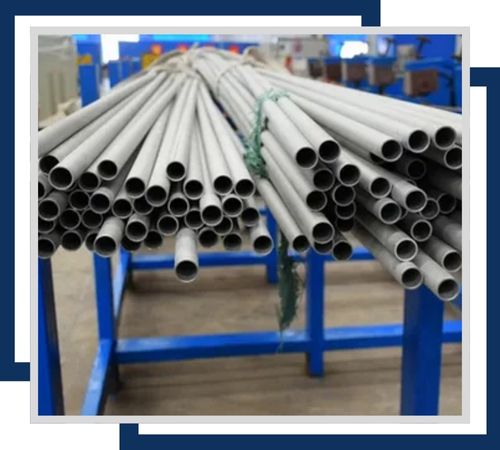

Ideal for boiler systems, these tubes are typically found in sizes from 1″ to 3″ in diameter. They are designed to handle high temperatures and pressures, with good resistance to corrosion.

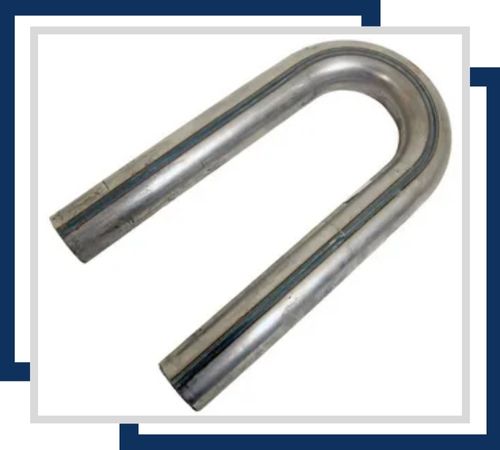

These U-shaped tubes are commonly used in heat exchangers and condensers. Sizes usually range from 1/2″ to 2″ in diameter. They provide good resistance to heat and corrosion.

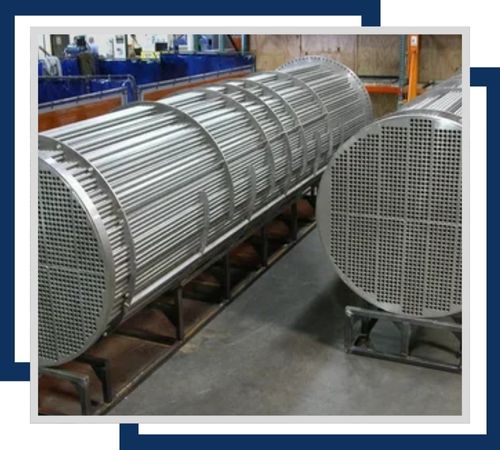

Used in condenser units, these tubes are generally available in diameters from 1/2″ to 2″. They offer excellent resistance to corrosion and high temperatures, making them suitable for various thermal applications.

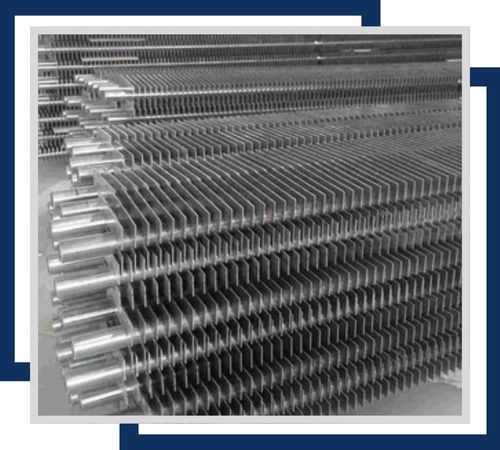

These tubes feature fins attached to increase surface area for heat transfer. They are typically available in diameters from 1/2″ to 2″. They offer good corrosion resistance and are used in heat exchangers and radiators.
Stainless Steel 405 Tubing finds its place in various industries that need materials capable of enduring high temperatures and harsh environments. You’ll often see it in automotive exhaust systems, heat exchangers, annealing boxes, and components for industrial furnaces. Its excellent thermal conductivity and oxidation resistance make it a great fit for the energy, petrochemical, and engineering sectors. Additionally, SS 405 tubing is utilized in gas turbine components, steam nozzles, and equipment that experiences cyclic heating.
