At Mitchell Stainless in Hamilton, New Zealand, we supply versatile stainless steel sheets and plates trusted across a wide range of industries. Our Stainless Steel 304/304L Sheets and Plates combine excellent corrosion resistance, durability, and ease of fabrication, making them one of the most widely used stainless steel grades. Suitable for both structural and hygienic applications, they perform reliably in everyday and demanding environments alike. Supported by Mitchell Stainless’ commitment to quality and local expertise, 304/304L Sheets and Plates provide dependable, long-lasting solutions for industrial, commercial, and architectural projects.
Stainless Steel 304/304L Sheets and Plates are austenitic alloys containing chromium and nickel, offering excellent corrosion resistance and toughness. The low carbon content of 304L reduces the risk of carbide precipitation during welding, improving weldability and corrosion performance. These grades provide good tensile strength, ductility, and impact resistance across a wide temperature range. Stainless Steel 304/304L maintains mechanical stability under stress, making it suitable for fabrication, forming, and welded applications requiring reliable performance and durability.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.

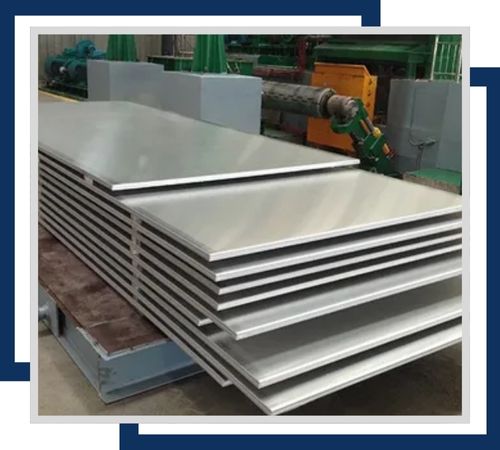

This type of stainless steel is known for its good corrosion resistance. The thickness of this type of stainless steel ranges from 3mm to 100mm. The sheets and plates are available in sizes up to 1500mm x 3000mm. Suitable for structural applications and industrial uses.

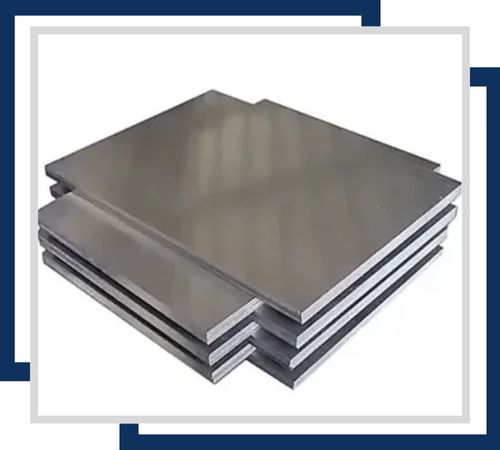

Offering great corrosion resistance, 304L cold-rolled sheets and plates are well known for smooth finish. These are available in thicknesses of 0.5mm up to 12mm, standard sizes up to 1500mm x 3000mm. They are ideal for applications requiring high-quality surface.

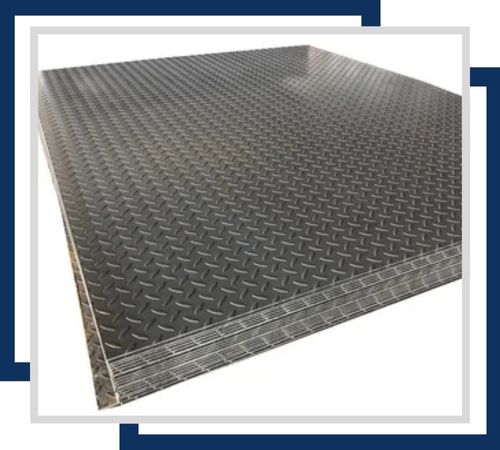

With superior corrosion resistance, 304L chequered sheets and plates are designed for anti-slip applications. They typically come in 2mm to 6mm thicknesses and sizes up to 1500mm x 3000mm. They are commonly used in flooring and stair treads.

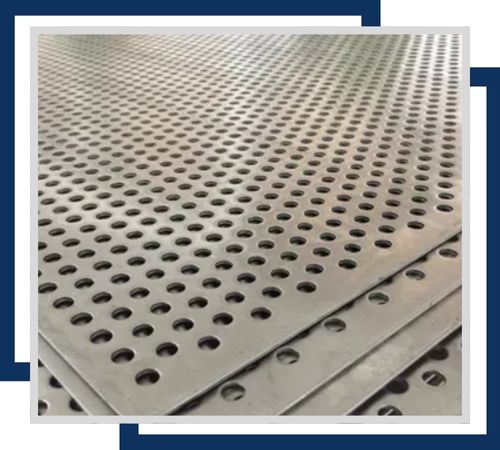

Featuring excellent corrosion resistance, these hole-perforated sheets and plates come in different hole patterns, size, and thickness with a specified range of 0.5mm to 6mm, standard dimension up to 1500mm x 3000mm, suitable for filtration and decorative uses.

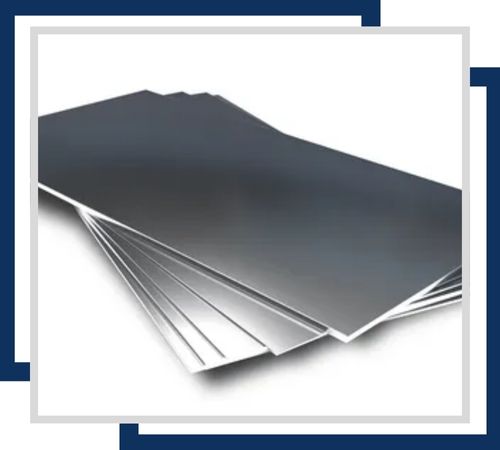

304 shim sheets and plates have good corrosion resistance. They can be as thin as 0.1mm. Standard sizes can go up to 1500mm x 3000mm. These are used in machinery for accurate spacing and adjustment.

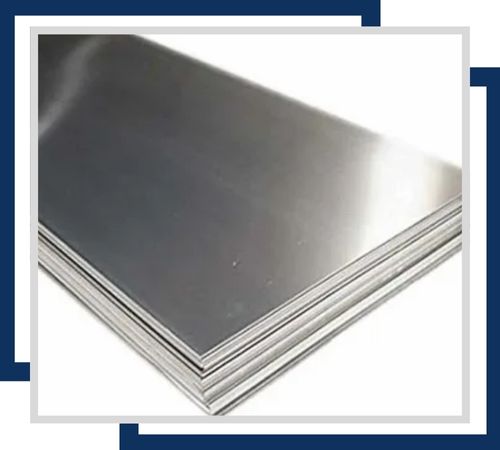

304 polished sheets and plates offer excellent corrosion resistance and a high-gloss finish. Thicknesses from 0.5mm to 12mm, and sizes up to 1500mm x 3000mm. Aesthetic and architectural applications.
Mitchell Stainless aims at making the purchase process hassle-free for its clients by offering detailed documentation of excellent quality Stainless Steel 304/304L Sheets and Plates. These include critical commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports, which give the authenticity and premium quality to our products. We also offer Stainless Steel 304/304L Sheets and Plates with Test Certificate like EN 10204 3.1b, PMI Test Certificate, radiography test reports of 100%, and third-party inspection. It shows us focused on satisfaction to our valued customers and also hard work.
Stainless Steel 304/304L Sheets and Plates are widely used in food processing equipment, chemical tanks, architectural cladding, kitchen surfaces, storage vessels, and general fabrication. They are also common in pharmaceutical, dairy, marine, and construction applications due to their hygiene and corrosion resistance. At Mitchell Stainless, we supply 304/304L Sheets and Plates for projects requiring versatility, ease of fabrication, and long service life. Their excellent balance of strength, corrosion resistance, and workability makes them a preferred choice across industrial, commercial, and architectural sectors.
