Mitchell Stainless is one of the most prominent and recognized stainless steel product manufacturers and suppliers in Hamilton, New Zealand. Our company works with a sole aim of customer satisfaction and high-quality products and deals with a diverse range of stainless steel sheets, plates, pipes, and fittings to various industries. Our Stainless Steel 310/310S Sheets and Plates are the most excellent options known for oxidation and corrosion resistance at very high temperatures. These alloys are suitable for applications in industries such as chemical processing, petrochemical, and heat exchangers, where superior strength and durability are important. We are proud to provide reliable, high-performance stainless steel solutions for demanding environments.
Stainless Steel 310/310S is a stainless austenitic alloy made up of chromium content between 24-26%, nickel ranging from 19-22% and traces of manganese, silicon, and carbon. The prime difference between the two is 310S containing less carbon gives better weldability and resistance towards sensitization, and its properties are tensile strength 520-720 MPa, yield strength 205-310 MPa, and 40-60% elongation. 310/310S is known for excellent resistance to oxidation, corrosion, and high-temperature scaling. Thus, it is the best for application in heat exchangers, furnaces, and chemical processing equipment, which are operated under elevated temperatures and aggressive environments.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | Fe | |
|---|---|---|---|---|---|---|---|---|
| 310 | 0.25 max | 2.0 max | 1.50 max | 0.045max | 0.03max | 24-26 | min: 8.0 max: 12.0 | Balance |
| 310S | 0.08 max | 2.00 max | 1.50 max | 0.045 | 0.03 | 24-26 | 19-22 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 310 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
| 310S | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
Contact us to get a quick quote for your requirement.

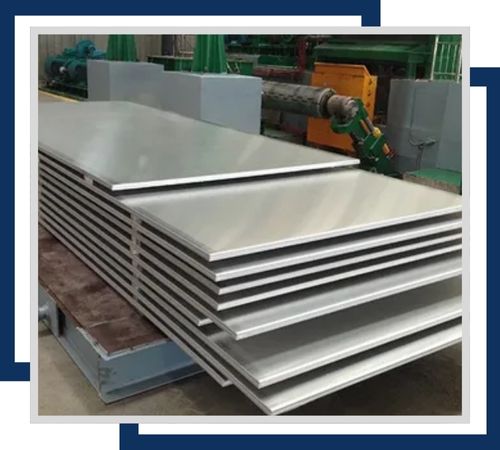

Hot-rolled sheets of Stainless Steel 310 are corrosion-resistant and resistant to corrosion and have high temperature stability. Available in sizes of 1.5 mm up to 25 mm thick, dimensions vary with customer requirements and offer robust performance in high-temperature applications.

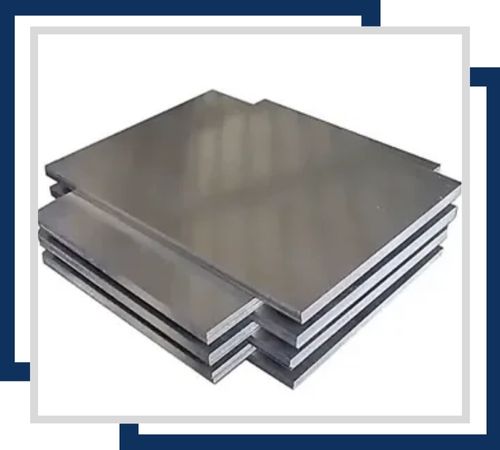

Available in gauges from 0.4 mm to 3 mm thickness, these have excellent corrosion resistance and improved surface finish. Suitable for applications which require tight tolerance and smoothness of the surfaces, these have precision and strength.

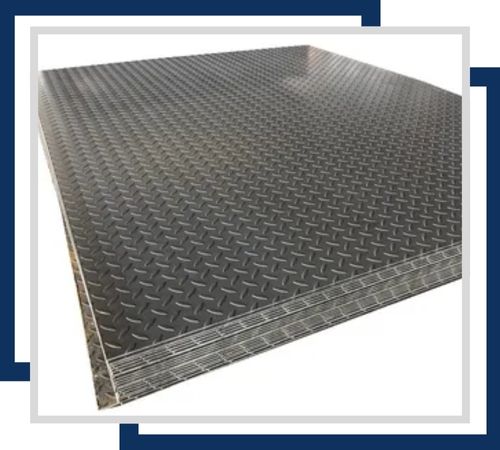

The Stainless Steel 310 chequered plates offer corrosion resistance with the added feature of slip resistance. The thickness varies from 2 mm to 12 mm. They are applied in floorings and industries for better traction.

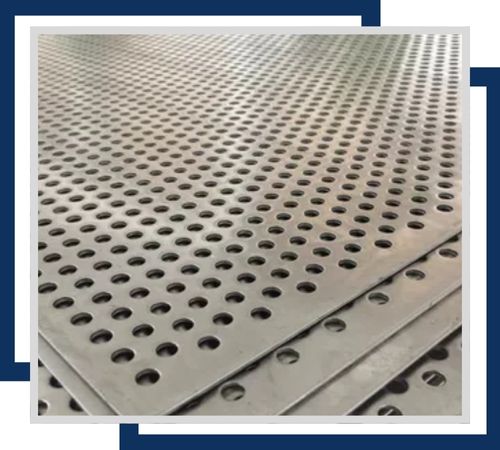

Stainless Steel 310 perforated sheets have available hole sizes and patterns that create aesthetic and practical benefits. Generally, thickness varies from 0.5 mm to 6 mm and finds application in filtration, ventilation, and decoration purposes.

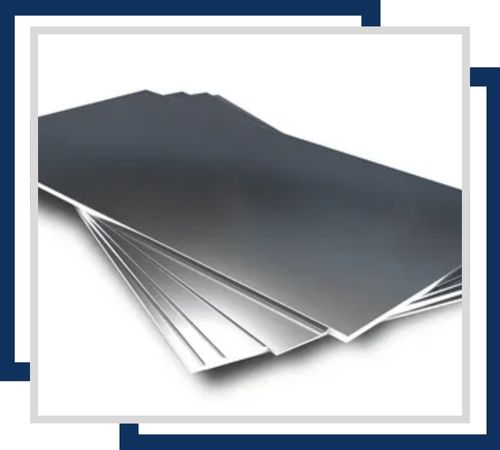

The shim sheets are made of stainless steel 310S and are available in thickness ranging from 0.1 mm to 1 mm. The thin sheets produce exact gaps or spaces in mechanical assemblies for adjustment.

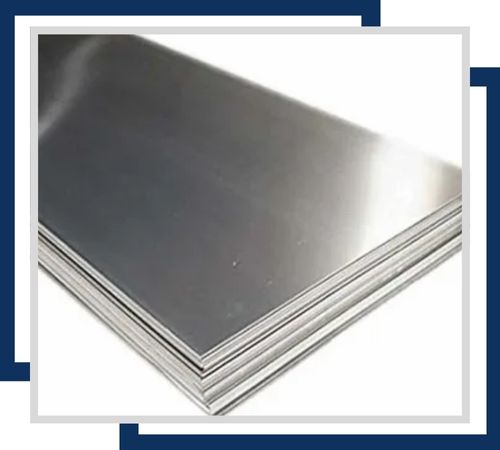

Stainless steel 310S polished plates combine corrosion resistance with high-quality finishes, both aesthetic and functional. They are available in 0.5 mm to 50 mm thickness and extensively used for decorative and high-end industrial applications.
Mitchell Stainless is providing a hassle-free experience to our esteemed customers by issuing a complete documentation set for all our high-grade Stainless Steel 310/310S Sheets and Plates. Documents such as Commercial Invoices, Packing Lists, Fumigation Certificates, Heat Treatment Charts, Quality Assurance Plans, NABL-approved Laboratory Test Reports accompany our products ensuring authenticity and superb quality. In addition, our Stainless Steel 310/310S Sheets and Plates are provided with a variety of test certificates, such as MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, which reflect our commitment to customer satisfaction and our continuous pursuit of product excellence.
Stainless Steel 310/310S sheets and plates are used to withstand high temperatures, along with providing strength, oxidation resistance, and corrosion durability. These alloys are typical for furnace components, heat exchangers, and industrial kilns. They are used in chemical, petrochemical, and food processing industries where resistance to scaling and long-lasting performance are required. SS 310/310S is also used for the production of heat-resisting equipment and the boilers, gas turbines, as well as reactor cores. That is, because of excellent resistance to critical situations, which can be associated with acid and high-temperature conditions, in power plants, auto-exhaust systems, as well as other highly stressed engineering applications.
