Mitchell Stainless is a reliable manufacturer and supplier of Stainless Steel 316/316L sheets and plates based in Hamilton, New Zealand. We pride ourselves on delivering top-notch products that meet the demands of tough industrial settings. With a reputation for precision manufacturing, rigorous quality control, and dependable supply, Mitchell Stainless caters to industries that require outstanding corrosion resistance and durability. Our 316/316L sheets and plates are crafted using cutting-edge processing techniques, ensuring consistent thickness, a superior surface finish, and adherence to international standards. Committed to customer satisfaction, timely delivery, and technical support, Mitchell Stainless has become a trusted partner for stainless steel solutions throughout New Zealand.
Stainless Steel 316/316L sheets and plates are made with chromium, nickel, and molybdenum, which enhance their resistance to corrosion, particularly in chloride and marine environments. The low carbon content in 316L helps reduce carbide precipitation during welding, boosting weldability and resistance to intergranular corrosion. These grades showcase impressive tensile strength, good yield strength, and high ductility, making them easy to fabricate and form. They also maintain mechanical stability at high temperatures while providing good toughness at low temperatures, making them suitable for a variety of structural and process applications.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

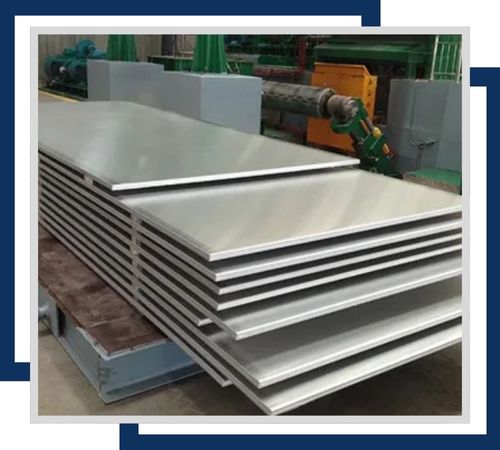

Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

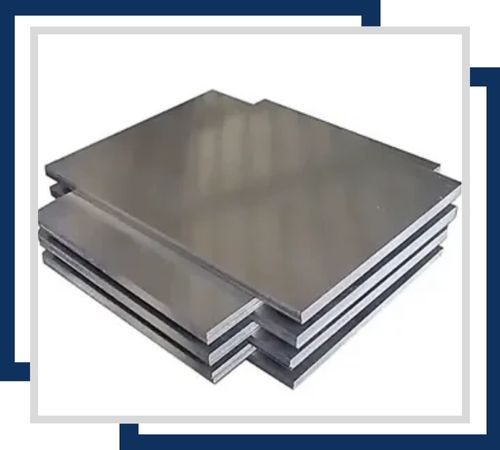

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

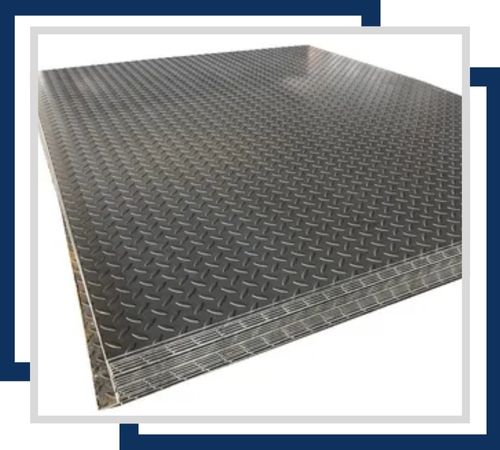

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

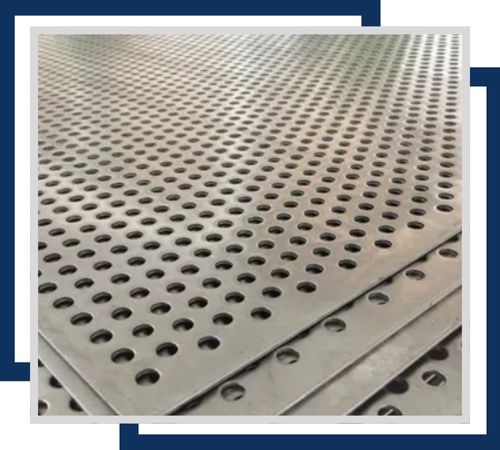

Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

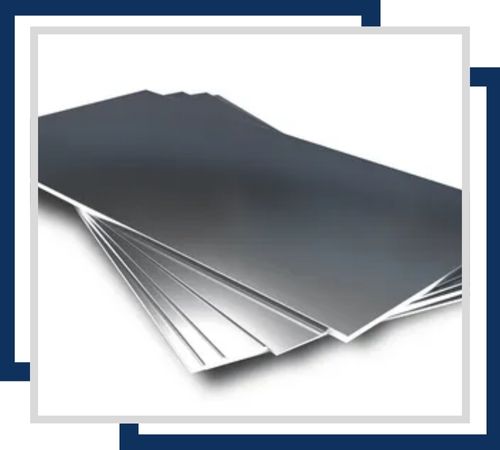

Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

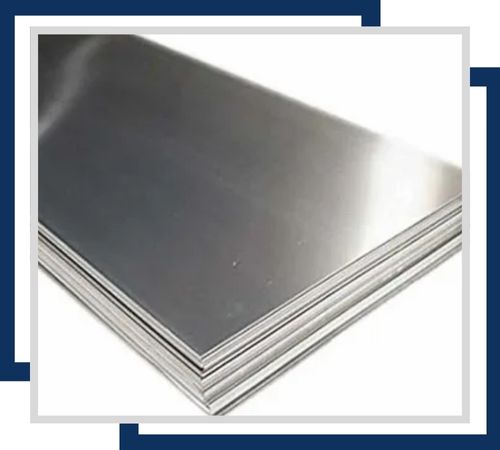

Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Mitchell Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
Mitchell Stainless’s Stainless Steel 316/316L sheets and plates find extensive use in the chemical processing, marine, pharmaceutical, food processing, and oil and gas industries. Their exceptional corrosion resistance makes them perfect for equipment that faces harsh chemicals, saltwater, and acidic conditions. Common applications include storage tanks, pressure vessels, heat exchangers, cladding, architectural panels, and various fabrication components. The outstanding weldability and versatility of these materials make them a go-to choice for many industrial applications.
