Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 440B Sheets and Plates based in Hamilton, New Zealand. They cater to a variety of industrial sectors, providing precision-engineered stainless solutions. Known for their dedication to quality, the company delivers products that boast exceptional hardness, durability, and corrosion resistance, making them perfect for tough environments. With cutting-edge manufacturing capabilities and rigorous quality control, Mitchell Stainless guarantees that every 440B sheet and plate meets international standards and exceeds customer expectations. Their expertise, dependable service, and innovative approach have established them as a go-to partner for clients in need of strong, wear-resistant stainless steel materials throughout New Zealand and beyond.
Stainless Steel 440B Sheets and Plates are high-carbon martensitic stainless steels enriched with chromium, which enhances their hardness and provides moderate corrosion resistance. The typical composition includes carbon, chromium, manganese, silicon, and trace elements that boost wear resistance. Mechanically, 440B offers outstanding tensile strength, high hardness after heat treatment, and excellent edge retention, making it perfect for applications that demand superior toughness. Its good dimensional stability and resistance to abrasion ensure reliable performance in challenging conditions, while its ability to achieve a high polish and sharp edges further enhances its utility in precision-focused applications.
| Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Profiling | Plasma Plate Cutting, Laser Plate Cutting, Oxy-propane Flame Cutting |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 440B | 0.6 -0.75 | 1.00 max | 1.00 max | 0.04 max | 0.030 max | 16.00 -18.00 | – |
| Tempering Temperature (°C) | Tensile Strengtd (MPa) | Yield Strengtd 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed* | 758 | 448 | 14 | 269HB max | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

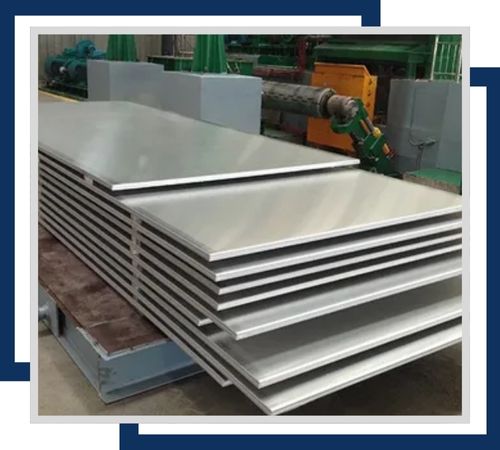

The excellent corrosion resistance provided by Stainless Steel 440B Hot Rolled Sheets ensures that it can be delivered in sizes between 3mm up to 150mm thickness, and in up to 2500mm width, for use where high strength and resistance to wear is required.

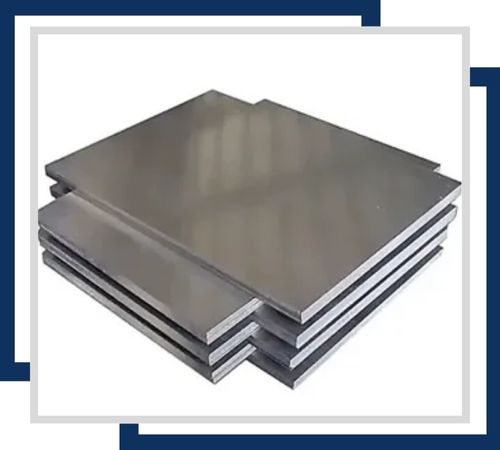

Cold-rolled stainless steel plates 440B have excellent corrosion resistance and a bright finish. These plates are available in a thickness range of 0.3mm to 6mm and widths up to 2000mm, which makes them ideal for precision applications that require tight tolerances.

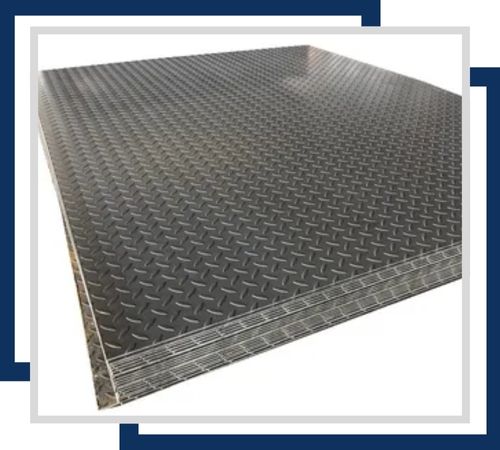

Stainless Steel 440B Chequered Plates, with raised patterns for improved grip, are resistant to corrosion. The thicknesses available are 1.5mm to 10mm, and the widths go up to 1500mm, which is perfect for flooring and stair treads.

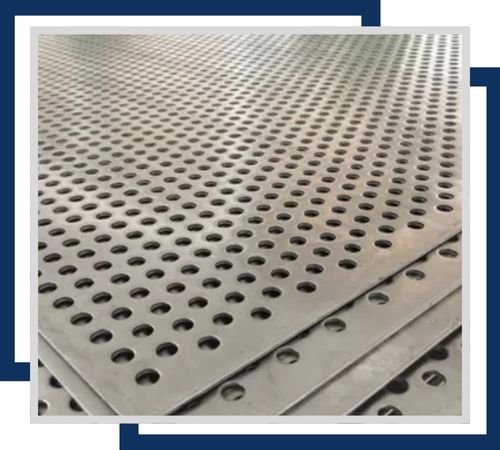

The perforated sheets are made from Stainless Steel 440B, providing corrosion resistance and ventilation. Generally available in a thickness range of 0.5mm to 3mm, and sheet sizes up to 2000mm x 4000mm, the perforated sheets are used for filtration, architectural, and decorative applications.

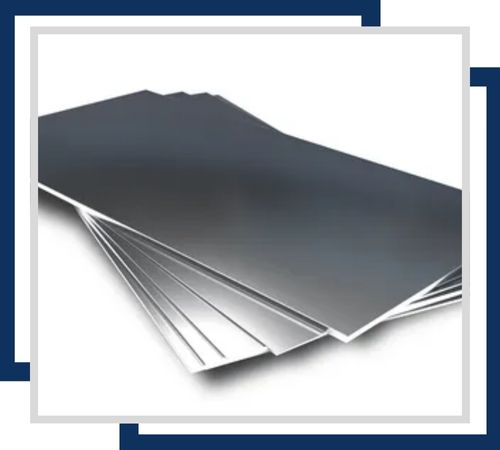

Stainless Steel 440B Shim Sheets are corrosion resistant and find applications in fine adjustment of machines and tools. The sheets have a thickness ranging from 0.05mm to 3mm and come in standard sizes such as 1000mm x 2000mm.

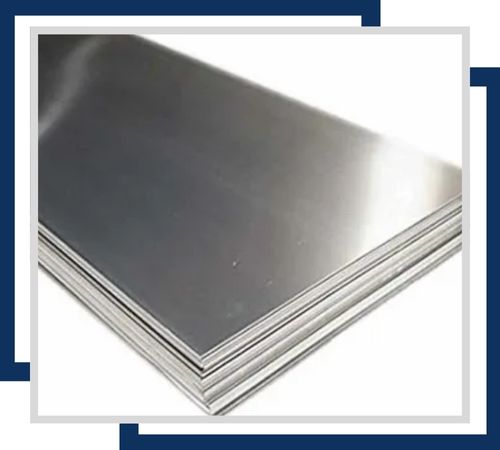

The 440B Polished Plates of Stainless Steel offer corrosion resistance along with an excellent aesthetic appeal, and are offered in a variety of thicknesses between 1mm and 50mm and widths up to 2000mm, especially for decorative and architectural applications.
At Mitchell Stainless, we give prime importance to quality along with great customer service backed up by rich documentation of the excellent Stainless Steel 440B Sheets and Plates that we deliver. We give essential documents that include the commercial invoice, the packing list, fumigation certificate, heat treatment chart, quality assurance plan, and a lab test report NABL approved. Such rich documentation of these premium quality products increases trust and confidence in the product from the most valued customers’ side. Besides, we provide Stainless Steel 440B Sheets and Plates with different test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, as a reflection of our commitment to excellence and customer satisfaction.
Stainless Steel 440B Sheets and Plates find extensive use in industries that require durable, wear-resistant materials with impressive hardness and strength. They are commonly used in the production of cutting tools, industrial blades, surgical instruments, and mechanical components that face heavy friction. Additionally, they are utilized in automotive parts, pump components, valve parts, and high-stress machinery. Thanks to their excellent edge retention and polishability, 440B plates are particularly well-suited for precision applications, ensuring that they meet the rigorous demands of various industries while maintaining their performance and reliability.
