Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 347/347H Sheets and Plates based in Hamilton, New Zealand. They’ve built a solid reputation for delivering outstanding quality and reliability. Thanks to their state-of-the-art production facilities and rigorous quality control measures, the company guarantees products that not only meet global standards but also thrive in tough industrial settings. Their 347/347H sheets and plates are designed for exceptional heat resistance, corrosion protection, and long-lasting durability. Catering to a variety of industries across New Zealand and beyond, Mitchell Stainless is dedicated to providing tailored solutions, prompt delivery, and unparalleled technical expertise, making them the go-to choice for stainless steel materials in high-temperature applications.
Stainless Steel 347/347H Sheets and Plates are stabilized austenitic alloys that include chromium, nickel, and niobium, which give them remarkable resistance to intergranular corrosion. The 347 grade is known for its excellent welding capabilities, while the 347H variant has a higher carbon content, enhancing its strength at elevated temperatures. These materials boast impressive tensile strength, good creep resistance, and reliable toughness, even when faced with thermal stress. Their well-balanced chemical makeup ensures stability at high temperatures, making them perfect for applications that require consistent heat exposure. Mitchell Stainless provides precisely engineered 347/347H sheets and plates that consistently adhere to international mechanical and chemical standards.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

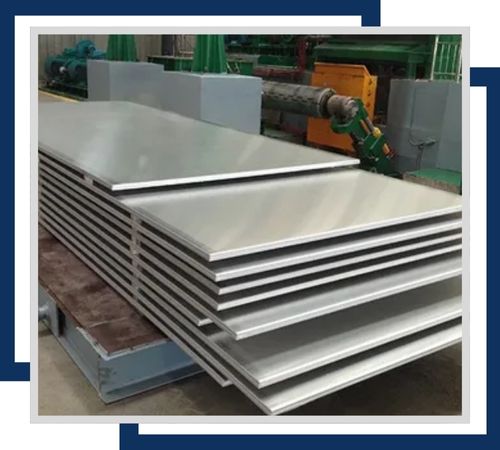

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

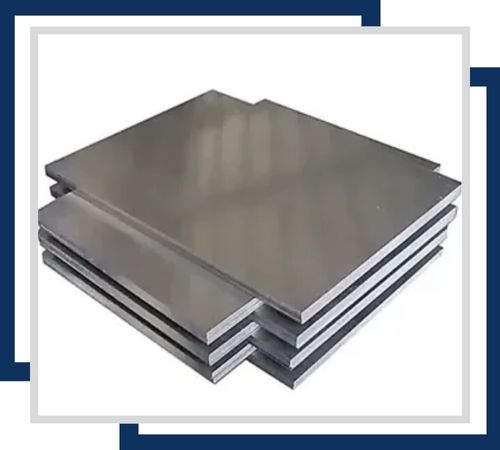

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

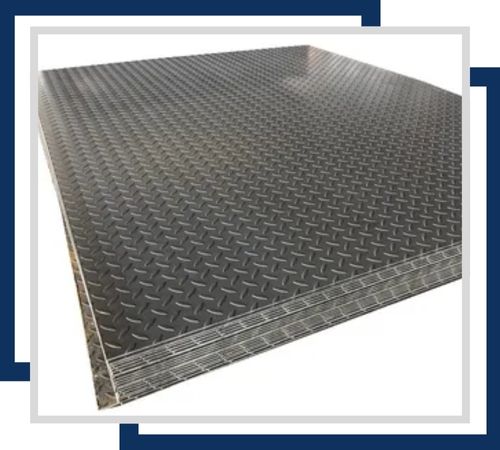

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

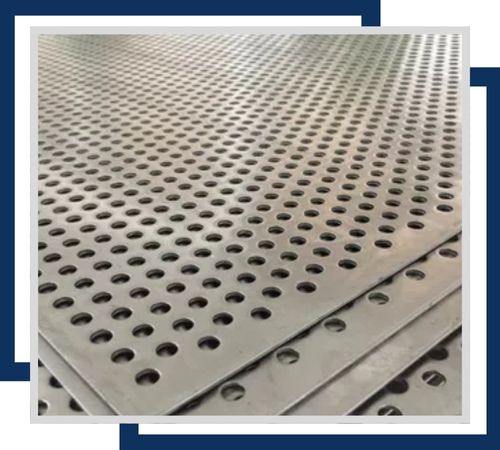

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

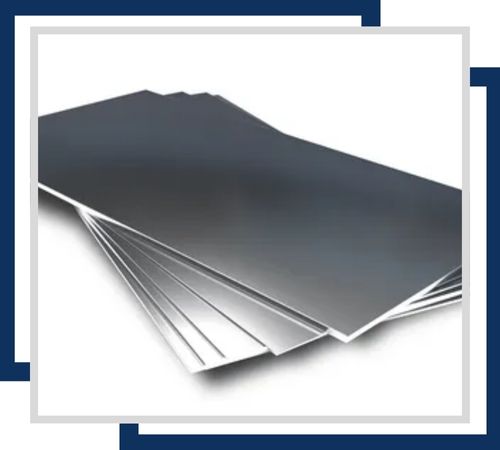

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

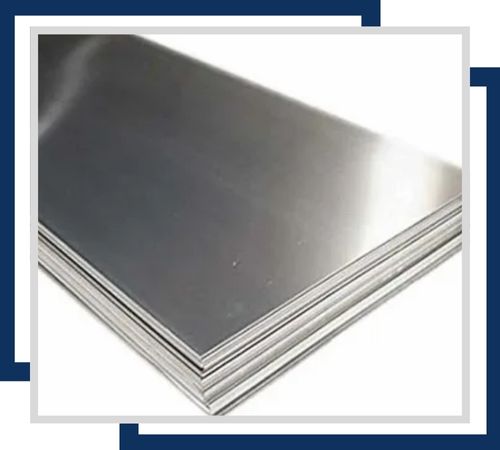

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Mitchell Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Stainless Steel 347/347H Sheets and Plates find extensive use in industries where high-temperature stability and corrosion resistance are crucial. You’ll commonly see them in heat exchangers, boiler casings, furnace components, chemical processing equipment, and exhaust systems. These grades are also well-suited for aerospace structures, refinery equipment, and thermal power generation systems, thanks to their ability to resist oxidation and creep at elevated temperatures.
