Home > Sheet and Plates > Stainless Steel 440C Sheet and Plates
Mitchell Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 440C Sheets and Plates based in Hamilton, New Zealand. They’ve built a solid reputation for delivering outstanding quality and performance across a range of industrial sectors. With a strong focus on precision engineering, durability, and keeping customers happy, the company provides 440C stainless steel products that adhere to strict international standards. Their cutting-edge manufacturing techniques and thorough quality control guarantee products that boast superior hardness, wear resistance, and corrosion resistance, making them perfect for demanding applications. As a leading supplier in Hamilton, Mitchell Stainless is dedicated to supporting various industries with reliable, high-grade stainless steel solutions tailored to meet diverse project requirements.
The Stainless Steel 440C Sheets and Plates from Mitchell Stainless are known for their high carbon content combined with chromium, which boosts hardness, strength, and corrosion resistance. Typically, the composition includes around 1.0% carbon, 17% chromium, along with trace elements like silicon and manganese. On the mechanical side, 440C delivers remarkable tensile strength, excellent wear resistance, and the capability to achieve high hardness levels after heat treatment. These characteristics make it perfect for applications that demand durability, precision, and a long service life. Mitchell Stainless ensures that every sheet and plate meets rigorous quality standards for reliable performance.
| ASME/ASTM Grade | ASTM A480 / ASME SA480 |
| Width Available | 1800mm, 3000mm, 1500mm, 2000mm, 1000mm, 2500mm, 1219mm, 3500mm etc |
| Thickness | 4mm – 100mm |
| Supply Length | 2000mm, 2440mm, 6000mm, 5800mm,3000mm etc |
| Most Commom Finish | SATIN (Met with Plastic Coated), 2B, Cold rolled sheet (CR), BA NO(8), Hot rolled plate (HR), 2D |
| Surface types | sand blast, etching, NO.1, embossed, hair line, 2B, Brush, BA, 2D, checkered, NO.8, 8K, NO.4, mirror, etc |
| Available Plate Form with us | Foils, Perforated Sheets, Plain Sheet, Coils, Rolls, Flats, Shim Sheets, Chequered Plate, Strip, Blank (Circle), Ring (Flange) etc. |
| Mo | S | C | Cr | Si | Mn | N | Ni | P |
| 0.75 | 0.03 | 0..95-1.20 | 16.00-18.00 | 1 | 1 | – | – | 0.04 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

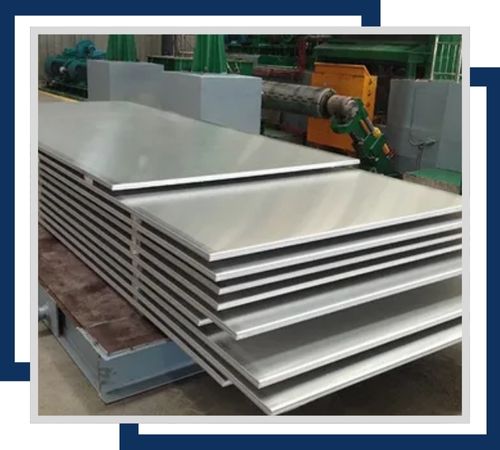

Stainless Steel 440C Hot Rolled Sheets have a high corrosion resistance and durability to be used for applications that need high strength. Usually available from 3mm to 50mm in thickness and up to 2000mm in width. These sheets are used for heavy-duty conditions where strength and toughness are in demand.

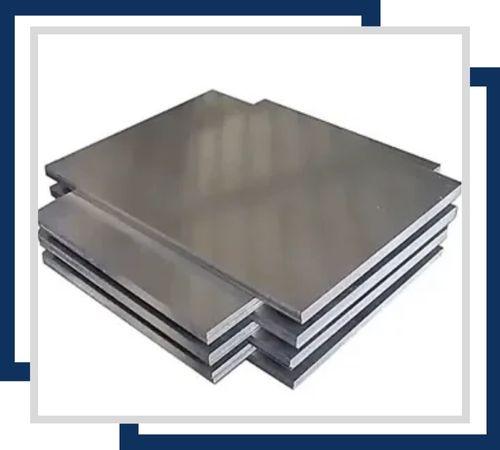

Stainless Steel 440C Cold Rolled Plates have excellent corrosion resistance and a smooth finish. The plates are generally supplied in the thickness of 0.5mm to 6mm and width up to 1250mm. The plates are best suited for applications where precision is needed along with high-quality surface finish.

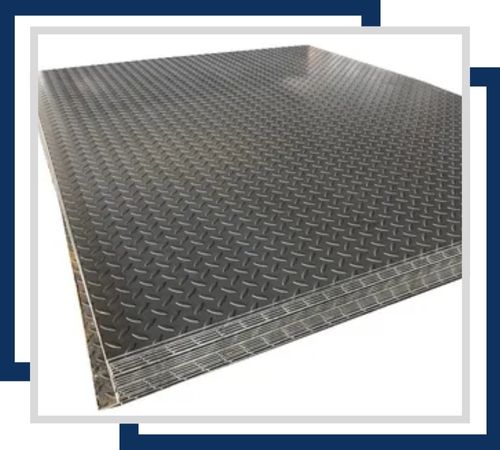

Stainless Steel 440C chequered sheet is used that provides raised patterns for enhanced friction resistance and scratch resistance. Highly corrosion resistant products with sizes as follows: -Thickness range 1.5 mm to 6 mm. They are available in standard sizes up to 1000mmx2000mm. Flooring application, safety purpose, industrial areas, etc.

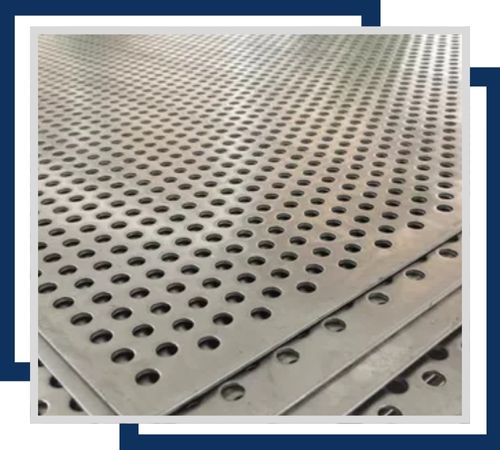

Stainless Steel 440C Perforated Sheets combine corrosion resistance with functional perforations for ventilation and filtration. Thickness ranges from 0.8mm to 6mm, with hole sizes and patterns. The sheets are used in architectural, industrial, and filtration applications where strength and design flexibility are needed.

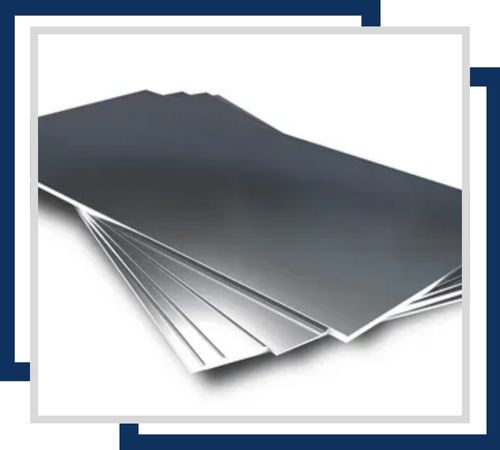

Stainless Steel 440C shim plates are provided with precise thickness tolerances and excellent corrosion resistance. They are available in the range starting from the thickness of 0.1mm up to 300mm width. It is ideal for applications requiring the proper spacing and adjustment, and for such machinery and assembly, it is preferred.

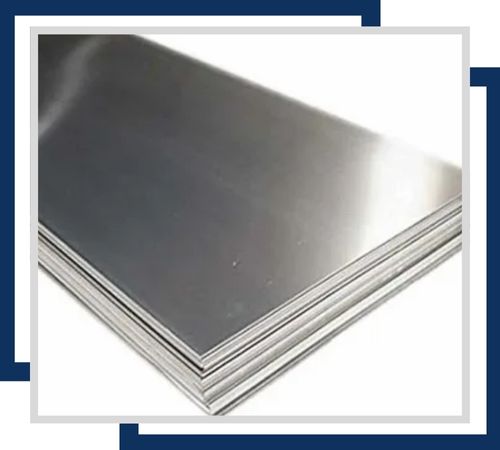

Stainless Steel 440C Polished Sheets offer a bright luster appearance with excellent corrosion resistance. Generally available in 0.5mm to 10mm thicknesses and up to 2000mm widths. These sheets are used in decorative and high-end applications where aesthetics and durability are important.
Mitchell Stainless specializes in bringing excellent customer experience with complete documentation for the superior-quality Stainless Steel 440C Sheets and Plates we offer to our customers. We provide commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports that prove authentic and superior quality. In addition, all our Stainless Steel 440C Sheets and Plates are provided with various test certificates such as MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These detail documents reflect that we are very customer-centric, and we aim for excellence with our products.
The Stainless Steel 440C Sheets and Plates from Mitchell Stainless find extensive use in industries that require high hardness, wear resistance, and corrosion protection. They are commonly used in the production of cutting tools, surgical instruments, ball bearings, valve components, and precision mechanical parts. Their impressive strength and durability also make them ideal for aerospace components, industrial machinery, and high-performance engineering projects. In settings where abrasion, impact, and long-term reliability are essential, 440C truly shines, proving to be a dependable choice for a variety of demanding applications.
